• Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning
• Headlamp warning buzzer
• Interior trim, Very Dark Pewter (Requires 69V Very Dark Pewter Vinyl or 69C Very Dark Pewter Cloth)
• Molded vinyl floor covering
• Powerpoints - two in-cab power sources (in addition to optional cigarette lighter) for electrical plug-in accessories
• Seat, passenger, high-back bucket, fixed height, manual back angle adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
• Steering, power - ZF variable ratio power
• Sunshades, passenger side and driver side, vinyl-covered
• Two sided single common key for doors and ignition
• Underhood bodybuilder connections accessory power supply - Provides 12V power supply from the battery with two separate 30 amp fused circuits

• Front shock absorber, diameter 1.375" (35mm)
• Front tire manufacturer code, Goodyear (Requires S4A Goodyear)
• Rear tire manufacturer code, Goodyear (Requires R4A Goodyear)
• Rear wheel drive

• Daytime Running Lamps

SINGLE HORIZONTAL-DRIVER SIDE MOUNTED INSIDE FRAME RAIL

• (STD)

SMOKERS PACKAGE

• -cigarette lighter/muffin ashtray located on center console

DANA 19060S, 19,000 LBS. (8618 KG) CAPACITY

• -includes 75W-90 synthetic lubricant and National brand oil seals (STD)

10,000 LBS. (4536 KG) CAPACITY

• (STD)

DELCO AM-FM STEREO RADIO

• -with coaxial speakers in all door panels

SUPPLEMENTAL INFLATABLE RESTRAINTS NOT INCLUDED

• (STD)

ISUZU DIESEL 6H 7.8L I6, 215 HP (160 KW) @ 2200 RPM AND 520 LB-FT TORQUE (705 N-M) @ 1450 RPM

• (Includes KPJ engine shutdown) Oil Level Sensor: Warning sensor for low oil levels

TRANSYND SYNTHETIC AUTOMATIC TRANSMISSION FLUID

• (STD)

SOLID NON-METALLIC PAINT

• (STD)

ALLISON 2500 (WIDE RATIO) 5-SPEED

• -with 4th Generation Electronic Controls and 0.74 overdrive. Torque rating: 550 lb-ft (745 N-m)
• 33
• 000 lbs. (15
• 000 kg) maximum GVWR/GCWR. Includes transmission oil cooler in radiator
• increased cooling and column shift.

DRIVER CONVENIENCE PACKAGE

• -includes N33 tilt-wheel and K34 cruise control

AUTOMATIC ENGINE SHUTDOWN WITH ALARM IS STANDARD

• -Includes reset feature.

1250-WATT, 110V

• -Includes protected receptacle on drivers side

RACOR FRAME-MOUNTED SPIN-ON TYPE

• with sight bowl
• drain
• and paper element. Includes water-in-fuel telltale dash light

VERY DARK PEWTER

• (STD)

ELECTRONIC ACTIVATION SWITCH, (ELECTRIC HAND THROTTLE), IP MOUNTED

• (Includes K34 cruise control)

HIGH-BACK BUCKET, FIXED HEIGHT, MANUAL ADJUSTER

• (STD)

PREMIUM, HIGHWAY

• (STD)

HYDRAULIC, SPLIT BRAKE SYSTEM

• -with 4-channel ABS disc-type Bosch Hydro Max high performance booster
• tandem master cylinder provides independent front and rear circuits
• front and rear disc Meritor calipers: 15 3/8" (391mm) rotor diameter
• 1 1/2" (39.1 mm) rotor thickness with (4) 2 1/2" (64 mm) diameter pistons with 8
• 000 lb. (3629 kg) front axle
• (70 mm) diameter pistons with 10
• 000 lb. (4536 kg) front axle (STD)

TRUCK APPLICATION

• (STD)

FRONT OIL SEALS WITH CLEAR CAPS

• Includes synthetic lubricant

260" (660.4CM)

• -with 192" (487.7 cm) CA and 304.2" (772.7 cm) CE

• SINGLE HORIZONTAL-DRIVER SIDE MOUNTED INSIDE FRAME RAIL (STD)
• 11R22.5G-12 350 LBS. (5602 KG) CAPACITY
• STABILIZER BAR
• SMOKERS PACKAGE -cigarette lighter/muffin ashtray located on center console
• DANA 19060S 19 000 LBS. (8618 KG) CAPACITY -includes 75W-90 synthetic lubricant and National brand oil seals (STD)
• CRUISE CONTROL
• AIR CONDITIONING
• CLOTH SEAT TRIM
• 10 000 LBS. (4536 KG) CAPACITY (STD)
• DELCO AM-FM STEREO RADIO -with coaxial speakers in all door panels
• PRE 2007I EMISSION ISUZU DIESEL ENGINE
• 22SI DELCO 130-AMP MAXIMUM
• TWO-PERSON STORAGE UNDER FOLD-UP SEAT AND IN CENTER SEAT BACK
• FEDERAL REQUIREMENTS
• TRANSMISSION TEMPERATURE GAUGE
• SUPPLEMENTAL INFLATABLE RESTRAINTS NOT INCLUDED (STD)
• DUAL 700 CCA DELPHI HEAVY-DUTY FREEDOM BS 31-700 12V
• RAIL PAINTED SEMI-GLOSS BLACK 8MM-80 000 PSI (551 600 KPA) YIELD STRENGTH
• FRONT CHROMED STEEL THICKNESS 5/32" (3.9 MM)
• ISUZU DIESEL 6H 7.8L I6 215 HP (160 KW) @ 2200 RPM AND 520 LB-FT TORQUE (705 N-M) @ 1450 RPM (Includes KPJ engine shutdown) Oil Level Sensor: Warning sensor for low oil levels
• TILT-WHEEL ADJUSTABLE STEERING
• HIGHWAY TRACTION BLOCK
• TRANSYND SYNTHETIC AUTOMATIC TRANSMISSION FLUID (STD)
• RATES GVWR AT 25 950 LBS. (11 736 KG) CAPACITY
• 11R22.5G-23 000 LBS. (10 430 KG) CAPACITY
• SOLID NON-METALLIC PAINT (STD)
• MANUAL HEATED 102" (259 CM) WIDE LOAD INTEGRAL ARM INTEGRAL CONVEX MIRROR
• ALLISON 2500 (WIDE RATIO) 5-SPEED -with 4th Generation Electronic Controls and 0.74 overdrive. Torque rating: 550 lb-ft (745 N-m) 33 000 lbs. (15 000 kg) maximum GVWR/GCWR. Includes transmission oil cooler in radiator increased cooling and column shift.
• DRIVER CONVENIENCE PACKAGE -includes N33 tilt-wheel and K34 cruise control
• AUTOMATIC ENGINE SHUTDOWN WITH ALARM IS STANDARD -Includes reset feature.
• MICHELIN
• 1250-WATT 110V -Includes protected receptacle on drivers side
• 22.5" X 8.25" (58.9 CM X 21 CM) STEEL DISC
• RACOR FRAME-MOUNTED SPIN-ON TYPE with sight bowl drain and paper element. Includes water-in-fuel telltale dash light
• 22.5" X 8.25" (58.9 CM X 21 CM) STEEL DISC
• VERY DARK PEWTER (STD)
• ELECTRONIC ACTIVATION SWITCH (ELECTRIC HAND THROTTLE) IP MOUNTED (Includes K34 cruise control)
• HIGH-BACK BUCKET FIXED HEIGHT MANUAL ADJUSTER (STD)
• BEHIND THE REAR SEAT STORAGE CONTAINER
• BOLTED REAR SUSPENSION
• PREMIUM HIGHWAY (STD)
• AIR CLEANER RESTRICTION GAUGE-MOUNTED ON INSTRUMENT PANEL.
• 5.29:1
• HYDRAULIC SPLIT BRAKE SYSTEM -with 4-channel ABS disc-type Bosch Hydro Max high performance booster tandem master cylinder provides independent front and rear circuits front and rear disc Meritor calipers: 15 3/8" (391mm) rotor diameter 1 1/2" (39.1 mm) rotor thickness with (4) 2 1/2" (64 mm) diameter pistons with 8 000 lb. (3629 kg) front axle (70 mm) diameter pistons with 10 000 lb. (4536 kg) front axle (STD)
• DRY-TYPE STANDARD FILTER ELEMENT
• TRUCK APPLICATION (STD)
• DUAL 75-GALLON (285L) TOTAL FUEL CAPACITY
• MULTI-LEAF 23 500 LBS. (10 660 KG) CAPACITY
• MICHELIN
• WHITE POWDER COATED PAINTED WHEELS
• INVERTED "L"-80 000 PSI (551 600 KPA) YIELD STRENGTH.
• DUAL-NOTE ELECTRIC
• MULTI-LEAF 4500 LBS. (2041 KG) CAPACITY
• TAPERED LEAF 12 000 LBS. (5443 KG) CAPACITY
• FRONT OIL SEALS WITH CLEAR CAPS Includes synthetic lubricant
• 260" (660.4CM) -with 192" (487.7 cm) CA and 304.2" (772.7 cm) CE
• Steel Wheels
• Tires - Front All-Season
• Rear Wheel Drive
• Steel Wheels
• Tires - Rear All-Season
• ABS
• 4-Wheel Disc Brakes
• Intermittent Wipers
• Daytime Running Lights
• Power Steering
• Power Outlet
• Power Outlet
• Bucket Seats
• Bucket Seats
• ABS
• Daytime Running Lights

• Vehicle
• Front Frame Rating: - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 700
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 700
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: 1560
• Cooling System
• Total Cooling System Capacity (qts): 29.3
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 10000
• Gross Axle Wt Rating - Front (lbs): 10000
• Gross Axle Wt Rating - Front (lbs): 12000
• Gross Axle Wt Rating - Front (lbs): 12350
• Gross Axle Wt Rating - Rear (lbs): 19000
• Gross Axle Wt Rating - Rear (lbs): 23000
• Gross Axle Wt Rating - Rear (lbs): 23500
• Curb Weight - Front (lbs): 4881.7
• Curb Weight - Rear (lbs): 3019.5
• Gross Vehicle Weight Rating Cap (lbs): 25950
• Gross Vehicle Weight Rating Cap (lbs): 33000
• Gross Vehicle Weight Rating Cap (lbs): 60000
• Gross Combined Wt Rating (lbs): 33000
• Gross Combined Wt Rating (lbs): 60000
• Suspension
• Suspension Type - Front: Tapered Leaf
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 12000
• Spring Capacity - Front (lbs): 10000
• Spring Capacity - Rear (lbs): 23500
• Spring Capacity - Rear (lbs): 19000
• Axle Type - Front: Reversed Elliot I-Beam
• Axle Type - Rear: Single Speed
• Axle Capacity - Front (lbs): 10000
• Axle Capacity - Front (lbs): 10000
• Axle Capacity - Rear (lbs): 19000
• Axle Capacity - Rear (lbs): 19000
• Axle Ratio (:1) - Rear: 5.29
• Shock Absorber Diameter - Front (mm): 35
• Stabilizer Bar Diameter - Front (in): 2
• Brakes
• Brake Type: PwrHydraulic
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15 3/8 x 1 1/2
• Front Brake Rotor Diam x Thickness (in): 15 3/8 x 1 1/2
• Rear Brake Rotor Diam x Thickness (in): 15 3/8 x 1 1/2
• Rear Brake Rotor Diam x Thickness (in): 15 3/8 x 1 1/2
• Tires
• Front Tire Order Code: XWL
• Front Tire Order Code: XTQ
• Rear Tire Order Code: YWL
• Rear Tire Order Code: YTQ
• Front Tire Size: 11R22.5G
• Rear Tire Size: 11R22.5G
• Front Tire Capacity (lbs): 12350
• Front Tire Capacity (lbs): 9000
• Rear Tire Capacity (lbs): 23000
• Rear Tire Capacity (lbs): 15800
• Revolutions/Mile @ 45 mph - Front: 504
• Revolutions/Mile @ 45 mph - Rear: 499
• Revolutions/Mile @ 45 mph - Rear: 561
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 1
• Wheels
• Front Wheel Size (in): 22.5 x 8.25
• Front Wheel Size (in): 19.5 x 6.75
• Rear Wheel Size (in): 22.5 x 8.25
• Rear Wheel Size (in): 19.5 x 6.75
• Front Wheel Offset (mm): 6.62
• Front Wheel Offset (mm): 5.60
• Rear Wheel Offset (mm): 6.62
• Rear Wheel Offset (mm): 5.60
• # of Bolt Holes - Front: 10
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 10
• # of Bolt Holes - Rear: 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Wheel Description Cont.: Hub Piloted
• Rear Wheel Description Cont.: Hub Piloted
• Front Bolt Pattern: 10stud/285.75mm
• Front Bolt Pattern: 8stud/275mm
• Rear Bolt Pattern: 10stud/285.75mm
• Steering
• Steering Ratio (:1), On Center: 18.1
• Steering Ratio (:1), At Lock: 21.4
• Turning Diameter - Curb to Curb (ft): 66.3
• Turning Diameter - Wall to Wall (ft): 69.4
• Frame
• Frame Type: C Channel w/L Reinforcement
• Sect Modulus Rails Only (in³): 20.36
• Sect Modulus Rails Only (in³): 9.58
• Frame RBM (N/A): 2239600
• Frame Strength (lbs): 80000
• Frame Thickness (in): 0.32 & 0.24
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25
• Aux Fuel Tank Capacity, Approx (gal): 50
• Fuel Tank Location: RH Step
• Aux Fuel Tank Location: LH Step
• Exterior Dimensions
• Wheelbase (in): 260
• Length, Overall w/o rear bumper (in): 409.2
• Length, Overall w/o rear bumper (in): 240.3
• Width, Max w/o mirrors (in): 95.9
• Height, Overall (in): 89.4
• Overhang, Front (in): 37
• Overhang, Rear w/o bumper (in): 112.2
• Front Bumper to Back of Cab (in): 105
• Cab to Axle (in): 192
• Cab to End of Frame (in): 304.2
• Frame Width, Rear (in): 3.0
• Body Length Default Value (ft): 26
• Interior Dimensions
• Passenger Capacity: 2
• Passenger Capacity: 2
• Front Head Room (in): 41.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.0
• Summary

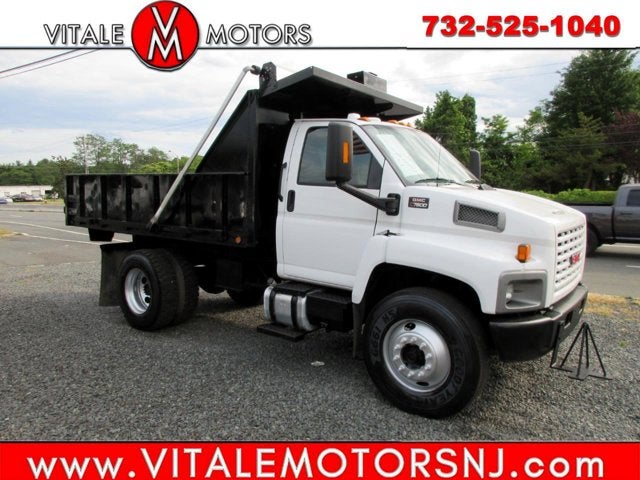

• Vehicle Name: GMC TC7500
• Body Style: ChassisCab
• Body Code: RQ2
• Medium Duty Performance
• Driver Ratio: 0.75
• Torque @ Clutch Engage (ft-lbs): 320
• Torque Converter: 1.73
• Static Loaded Radius (in): 19.4
• Static Loaded Radius (in): 17.4
• Max Speed For Gradeability: 65
