• Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning

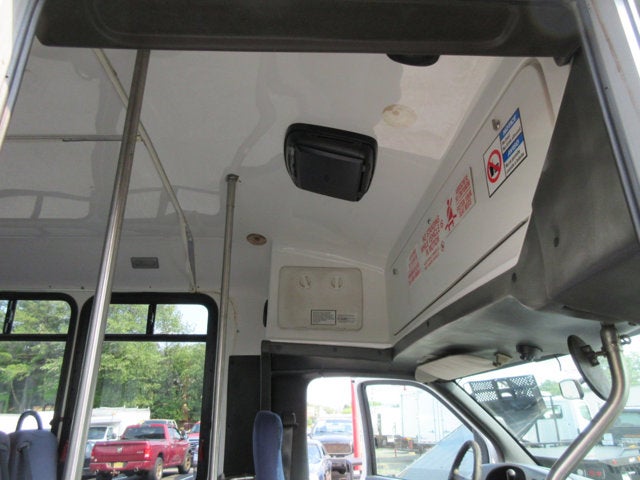

• Cloth headliner
• Coat hooks (2) located on cab back panel
• Headlamp warning buzzer
• Interior trim, Very Dark Pewter (Requires 69V Very Dark Pewter Vinyl or 69C Very Dark Pewter Cloth)
• Molded vinyl floor covering

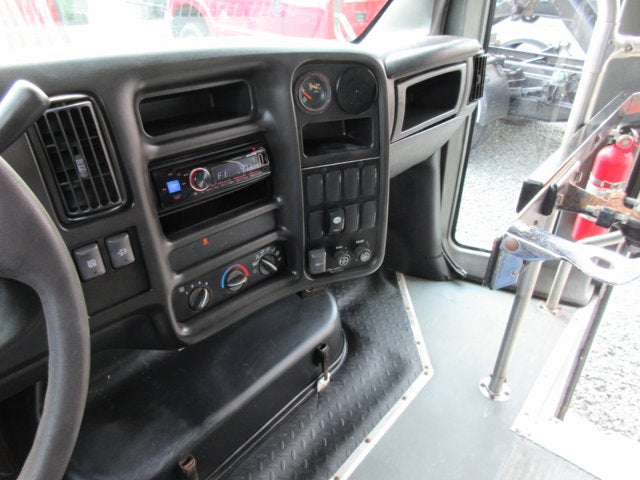

• Powerpoints - two in-cab power sources (in addition to optional cigarette lighter) for electrical plug-in accessories
• Seat, driver, high-back bucket, fixed height, manual adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
• Seat, passenger, high-back bucket, fixed height, manual back angle adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out

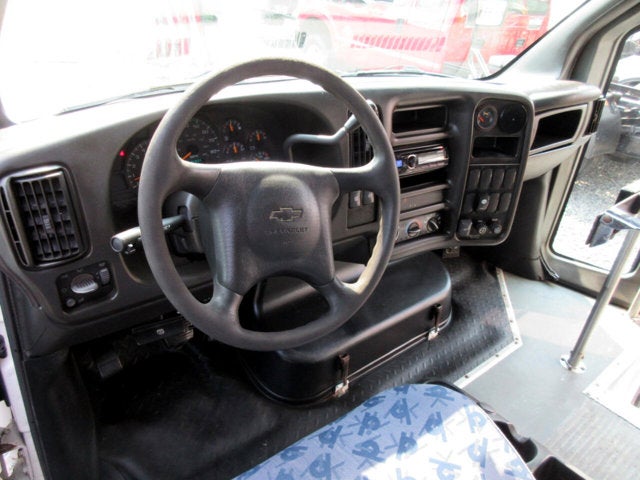

• Steering wheel 16"

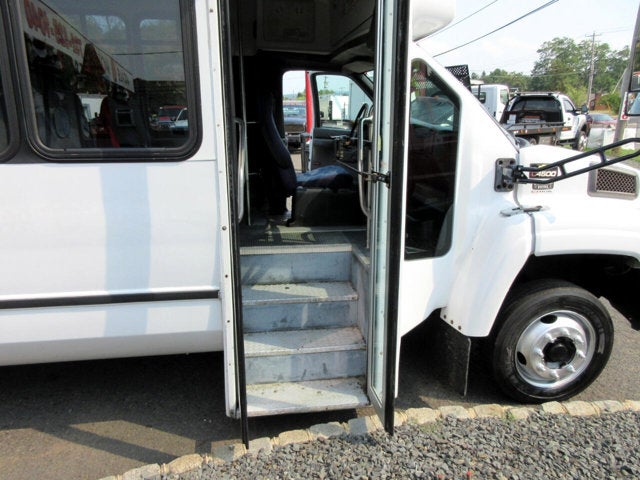

• Stepwell storage areas at each door front and rear. Includes storage cover.
• Sunshades, passenger side and driver side, cloth-covered
• Two sided single common key for doors and ignition
• Underhood bodybuilder connections accessory power supply - Provides 12V power supply from the battery with two separate 30 amp fused circuits
• Vinyl door trim panels - with storage pocket on front doors, beverage holders, and reflector on all doors
• Warning tone, key-in-ignition

• Air cleaner, dry type
• Brakes, rear, power, 4-wheel disc, 4 channel ABS 2-piston - (See Rear Axle options for more detail)
• Cooling, anti-freeze protection temperature - -40 degrees F (-40 degrees C)
• Frame, 6mm - 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63
• Front shock absorber, diameter 1.375" (35mm)
• Front stabilizer bar, 2" x 2" square tube (5 cm x 5 cm)
• Front tire manufacturer code, Goodyear (Requires S4A Goodyear)
• Front tread, premium, highway (Requires R4A Goodyear or R4L Michelin)
• Fuel sender assembly. Robust fuel pump
• Rear shock absorber not desired (N/A with tapered leaf springs)
• Rear suspension brackets are riveted to frame in lieu of bolts
• Rear tire manufacturer code, Goodyear (Requires R4A Goodyear)
• Rear tread, premium, highway (Requires S4A Goodyear or S4L Michelin)
• Rear wheel drive
• Steering, power - ZF variable ratio power
• Tethered fuel cap

• 4-wheel disc, 4-channel ABS
• Daytime Running Lamps
• Seat belt warning indicator

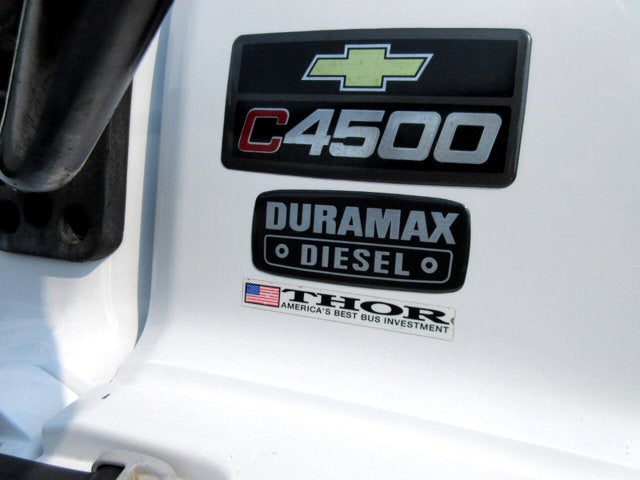

DURAMAX DIESEL 6.6L, 300 HP (223 KW) @ 3000 RPM, 520 LB-FT TORQUE (705 N-M) @ 1600 RPM

• (Includes KPJ Engine shutdown) Oil Level Sensor: Warning sensor for low oil levels

AUTOMATIC ENGINE SHUTDOWN WITH ALARM

• -Includes reset feature.

225/70R19.5F

• (STD)

225/70R19.5F

• (STD)

SUPPLEMENTAL INFLATABLE RESTRAINTS NOT INCLUDED

• (STD)

OPTION PTO NOT REQUIRED

• (STD)

DELETE RADIO

• -Includes separate door chime module. Deletes all wiring
• speakers
• and radio

TRANSYND SYNTHETIC AUTOMATIC TRANSMISSION FLUID

• (STD)

SINGLE, 40-GALLON (151L) FUEL CAPACITY

• (STD)

SINGLE SPEED, 11,000 LBS. (4990 KG) CAPACITY

• Includes 2-piston brake applied calipers (STD)

MANUAL, 102" (259 CM) WIDE LOAD, INTEGRAL ARM, INTEGRAL CONVEX MIRROR

• (STD)

PREMIUM, HIGHWAY

• (STD)

DELUXE FRONT APPEARANCE PACKAGE

• -Includes uplevel stationary grille
• V46 chrome front bumper
• quad painted headlamps with chrome trim

GOODYEAR

• (STD)

GOODYEAR

• (STD)

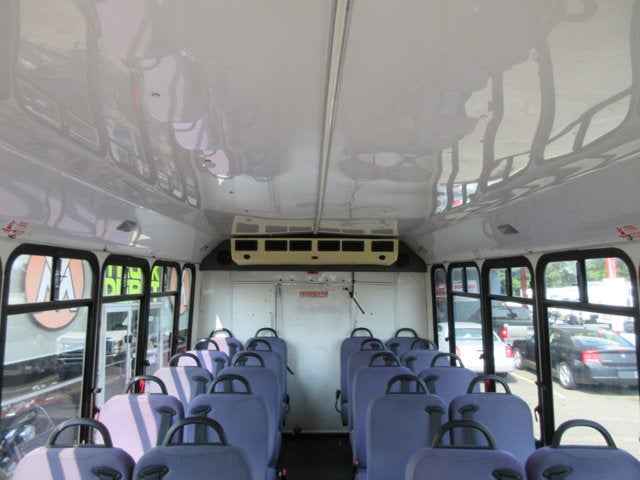

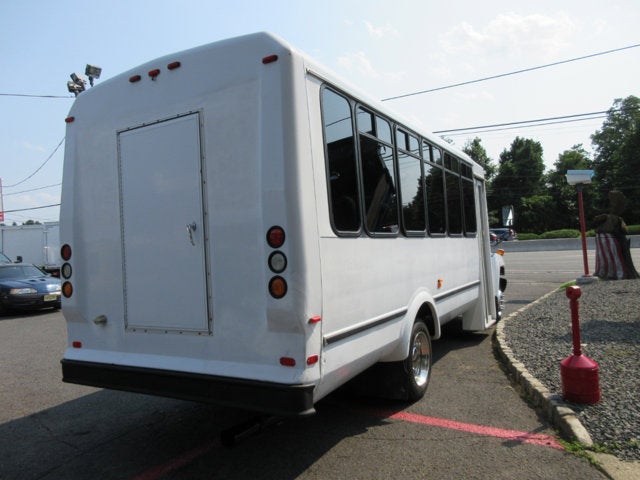

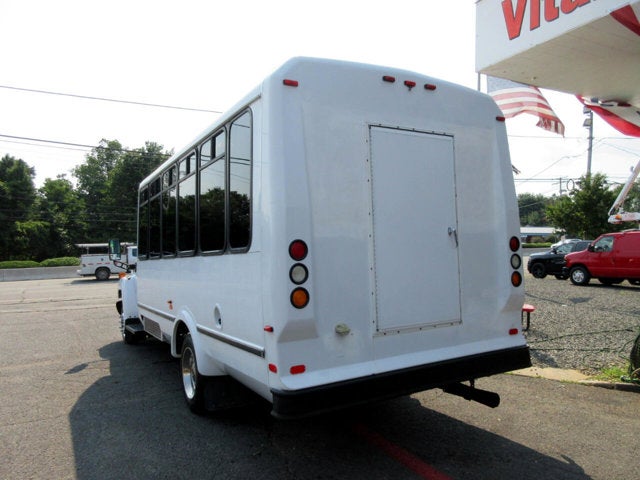

SHUTTLE BUS

• -Includes C60 air conditioning
• UZA roof marker delete
• N12 rear exit exhaust system
• UEA tail lamp delete
• D28 outside rear view mirrors delete
• KDZ provisions for rear heat on driver side
• provisions for 100 amp service on driver side
• battery located under driver door

7000 LBS. (3175 KG) CAPACITY

• includes 4-piston brake apply calipers. (STD)

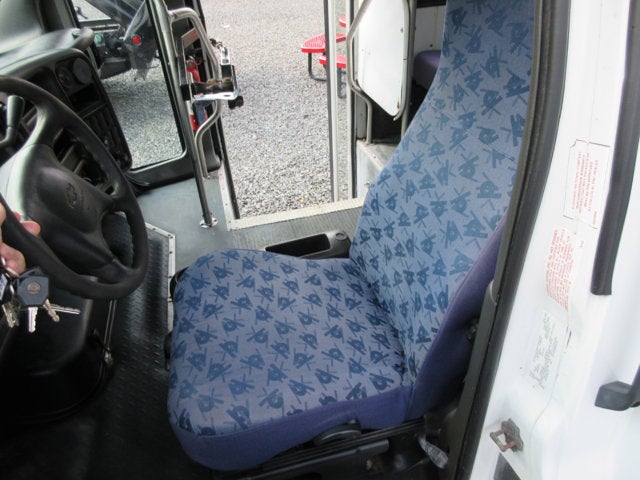

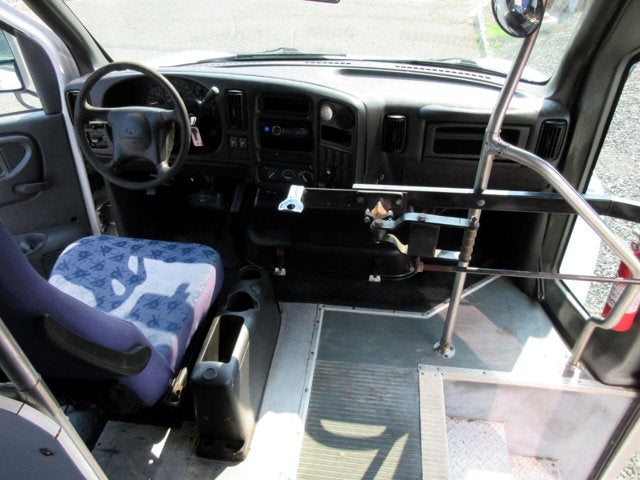

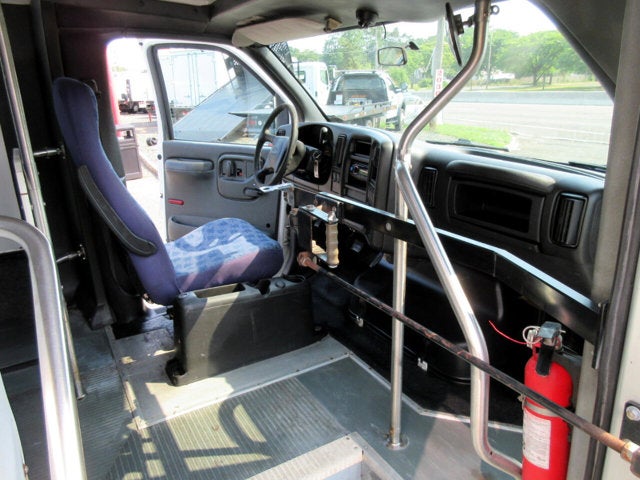

DRIVER SEAT, HIGH-BACK BUCKET, FIXED HEIGHT, MANUAL ADJUSTER

• (STD)

AUTOMATIC, ALLISON 1000 PTS PUPIL TRANSPORTATION/SHUTTLE SERIES 6-SPEED

• -and 0.61 overdrive. Torque Rating: 565 lb-ft (766 N-m). Column shift and park pawl.

16,500 LBS. (7484 KG) CAPACITY

• (STD)

TAPERED LEAF, 7000 LBS. (3175 KG) CAPACITY

• (includes stabilizer) (STD)

184" (467.4 CM)

• -with 118" (299.7 cm) CA with 202" (513.1 cm) CE. Includes a 6 mm 80
• 000 psi (551
• 600 kPa) yield strength
• steel frame
• RBM: 610
• 400 Section Modulus 7.63

PREMIUM HIGHWAY

• (STD)

DRIVER CONVENIENCE PACKAGE

• Includes N33 tilt-wheel and K34 cruise control

• VERY DARK PEWTER VINYL SEAT TRIM
• 4.88:1
• SUMMIT WHITE
• DURAMAX DIESEL 6.6L 300 HP (223 KW) @ 3000 RPM 520 LB-FT TORQUE (705 N-M) @ 1600 RPM (Includes KPJ Engine shutdown) Oil Level Sensor: Warning sensor for low oil levels
• CRUISE CONTROL
• AUTOMATIC ENGINE SHUTDOWN WITH ALARM -Includes reset feature.
• 225/70R19.5F (STD)
• 225/70R19.5F (STD)
• AIR CONDITIONING
• DELETE PASSENGER SIDE DOOR
• FRONT TOW HOOKS FRAME-MOUNTED
• TAPERED LEAF 11 000 LBS. (4990 KG) CAPACITY
• HIGH IDLE SWITCH
• DELETE ROOF MARKER LAMPS
• 19.5" X 6.75" (49.5 CM X 17.1 CM) STEEL DISC
• REAR SHOCK ABSORBER

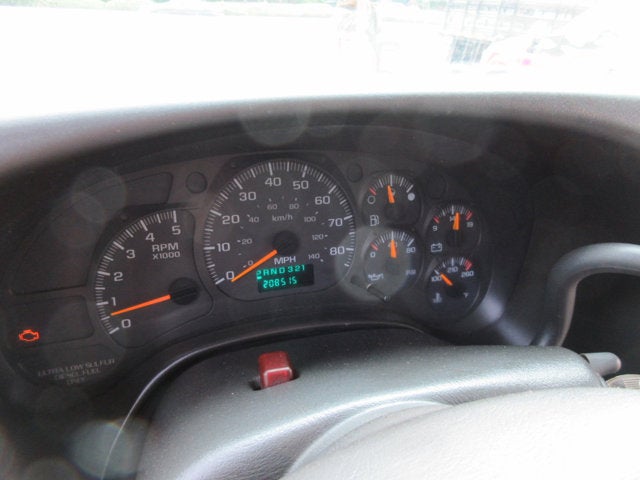

• TRANSMISSION TEMPERATURE GAUGE
• SUPPLEMENTAL INFLATABLE RESTRAINTS NOT INCLUDED (STD)
• DUAL 150-AMP MAXIMUM
• AUXILIARY TRANSMISSION COOLER
• OPTION PTO NOT REQUIRED (STD)
• DELETE RADIO -Includes separate door chime module. Deletes all wiring speakers and radio
• FRONT CHROMED STEEL THICKNESS 5/32" (3.9 MM)
• TILT-WHEEL ADJUSTABLE STEERING
• VERY DARK PEWTER
• TRANSYND SYNTHETIC AUTOMATIC TRANSMISSION FLUID (STD)
• OVER THE AXLE EXHAUST ROUTING WITH RIGHT SIDE REAR EXIT
• SINGLE 40-GALLON (151L) FUEL CAPACITY (STD)
• SINGLE SPEED 11 000 LBS. (4990 KG) CAPACITY Includes 2-piston brake applied calipers (STD)
• MANUAL 102" (259 CM) WIDE LOAD INTEGRAL ARM INTEGRAL CONVEX MIRROR (STD)
• PREMIUM HIGHWAY (STD)
• DELUXE FRONT APPEARANCE PACKAGE -Includes uplevel stationary grille V46 chrome front bumper quad painted headlamps with chrome trim
• SOLID NON-METALLIC PAINT
• GOODYEAR (STD)
• NO PASSENGER SEAT DESIRED
• 19.5" X 6.75" (49.5 CM X 17.1 CM) STEEL DISC
• REAR STABILIZER BAR
• 75 MPH (120 KPH) SPEED GOVERNOR
• GOODYEAR (STD)
• SHUTTLE BUS -Includes C60 air conditioning UZA roof marker delete N12 rear exit exhaust system UEA tail lamp delete D28 outside rear view mirrors delete KDZ provisions for rear heat on driver side provisions for 100 amp service on driver side battery located under driver door
• 7000 LBS. (3175 KG) CAPACITY includes 4-piston brake apply calipers. (STD)
• SUMMIT WHITE
• REAR SUSPENSION BRACKETS ARE BOLTED TO FRAME IN LIEU OF RIVETS
• DUAL 700 CCA ACDELCO 12V
• DRIVER SEAT HIGH-BACK BUCKET FIXED HEIGHT MANUAL ADJUSTER (STD)
• AUTOMATIC ALLISON 1000 PTS PUPIL TRANSPORTATION/SHUTTLE SERIES 6-SPEED -and 0.61 overdrive. Torque Rating: 565 lb-ft (766 N-m). Column shift and park pawl.
• 16 500 LBS. (7484 KG) CAPACITY (STD)
• WHITE POWDER COATED PAINTED WHEELS
• TAPERED LEAF 7000 LBS. (3175 KG) CAPACITY (includes stabilizer) (STD)
• DUAL-NOTE ELECTRIC
• INSIDE DAY/NIGHT REARVIEW MIRROR
• 184" (467.4 CM) -with 118" (299.7 cm) CA with 202" (513.1 cm) CE. Includes a 6 mm 80 000 psi (551 600 kPa) yield strength steel frame RBM: 610 400 Section Modulus 7.63
• PREMIUM HIGHWAY (STD)
• 1000-WATT 120V
• DRIVER CONVENIENCE PACKAGE Includes N33 tilt-wheel and K34 cruise control
• DELETE REAR TAIL LAMPS
• Steel Wheels
• Tires - Front All-Season
• Rear Wheel Drive
• Steel Wheels
• Tires - Rear All-Season
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• ABS
• 4-Wheel Disc Brakes
• Running Boards/Side Steps
• Daytime Running Lights
• Intermittent Wipers
• Bucket Seats
• Bucket Seats
• Vinyl Seats
• Power Outlet
• Power Outlet
• ABS
• 4-Wheel Disc Brakes
• Daytime Running Lights

• Vehicle
• Front Frame Rating: - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 700
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 700
• Maximum Alternator Capacity (amps): 300
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 27.3
• Total Cooling System Capacity (qts): 29.8

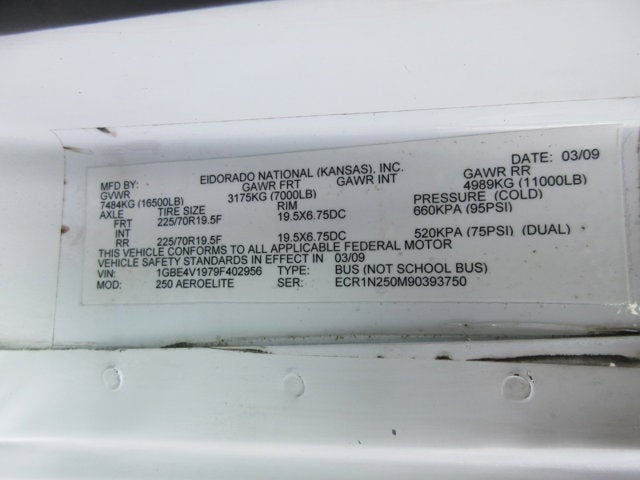

• Weight Information

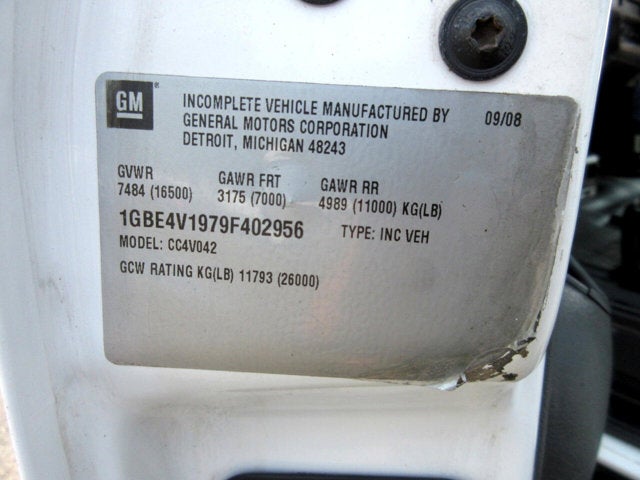

• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Front (lbs): 7280
• Gross Axle Wt Rating - Front (lbs): 6250
• Gross Axle Wt Rating - Rear (lbs): 11000
• Gross Axle Wt Rating - Rear (lbs): 13660
• Gross Axle Wt Rating - Rear (lbs): 11000
• Curb Weight - Front (lbs): 4506.1
• Curb Weight - Rear (lbs): 2707.8
• Gross Vehicle Weight Rating Cap (lbs): 16500
• Gross Vehicle Weight Rating Cap (lbs): 17500
• Gross Combined Wt Rating (lbs): 26000
• Gross Combined Wt Rating (lbs): 26000
• Suspension
• Suspension Type - Front: Tapered Leaf
• Suspension Type - Rear: Tapered Leaf
• Suspension Type - Rear: MultiLeaf
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Rear (lbs): 11000
• Axle Type - Front: Reverse I Beam
• Axle Type - Rear: Single Speed
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Front (lbs): 6250
• Axle Capacity - Rear (lbs): 11000
• Axle Ratio (:1) - Rear: 4.88
• Axle Ratio (:1) - Rear: 5.13
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 45
• Stabilizer Bar Diameter - Front (in): 1.5
• Stabilizer Bar Diameter - Rear (in): 1.73
• Brakes
• Brake Type: Pwr 4 Piston
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 15 x 1.5
• Tires
• Front Tire Order Code: XTN
• Rear Tire Order Code: YTN
• Front Tire Size: 225/70R19.5F
• Rear Tire Size: 225/70R19.5F
• Front Tire Capacity (lbs): 7280
• Rear Tire Capacity (lbs): 13660
• Revolutions/Mile @ 45 mph - Front: 646
• Revolutions/Mile @ 45 mph - Rear: 640
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 1
• Wheels
• Front Wheel Size (in): 19.5 x 6.75
• Front Wheel Size (in): 19.5 x 6.75
• Rear Wheel Size (in): 19.5 x 6.75
• Rear Wheel Size (in): 19.5 x 6.75
• Front Wheel Offset (mm): 5.60
• Rear Wheel Offset (mm): 5.60
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Wheel Description Cont.: Hub Piloted
• Rear Wheel Description Cont.: Hub Piloted
• Front Bolt Pattern: 8stud/275mm
• Rear Bolt Pattern: 8stud/275mm
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.1
• Steering Ratio (:1), At Lock: 19.6
• Turning Diameter - Curb to Curb (ft): 50.2
• Turning Diameter - Wall to Wall (ft): 53.5
• Frame
• Frame Type: Ladder-Type
• Sect Modulus Rails Only (in³): 7.63
• Frame RBM (N/A): 610400
• Frame Strength (lbs): 50000
• Frame Strength (lbs): 80000
• Frame Thickness (in): 0.24
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 184
• Length, Overall w/o rear bumper (in): 304.3
• Length, Overall w/o rear bumper (in): 273.2
• Width, Max w/o mirrors (in): 95.9
• Height, Overall (in): 89.5
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 100
• Front Bumper to Back of Cab (in): 102.5
• Cab to Axle (in): 118
• Cab to End of Frame (in): 202
• Frame Width, Rear (in): 2.84
• Body Length Default Value (ft): 14
• Interior Dimensions
• Passenger Capacity: 1
• Passenger Capacity: 2
• Front Head Room (in): 41.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.0
• Summary

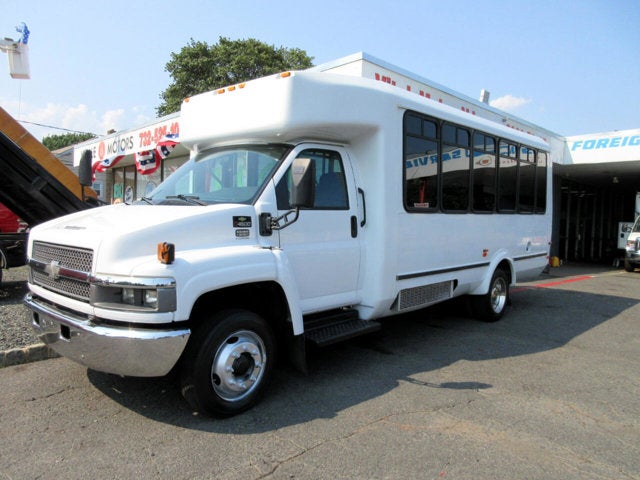

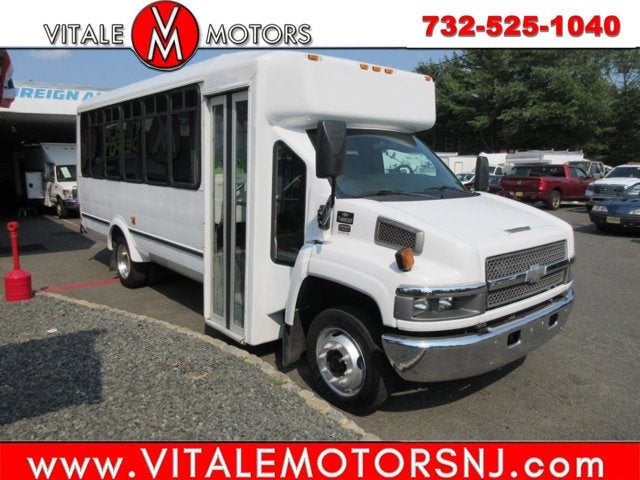

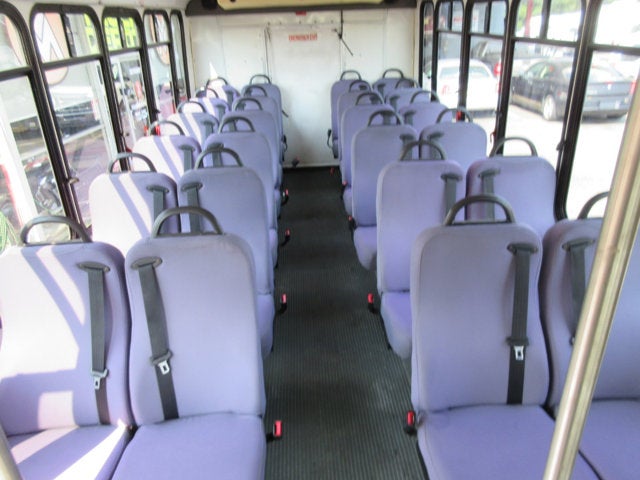

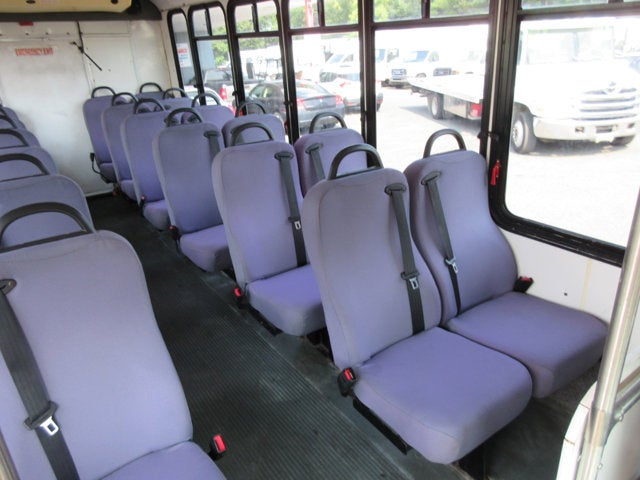

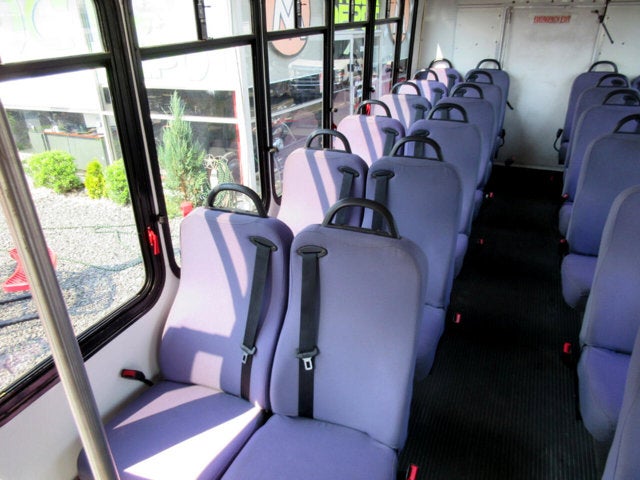

• Vehicle Name: Chevrolet CC4500
• Body Style: Cutaway Chassis Cab
• Medium Duty Performance
• Driver Ratio: 0.75
• Torque @ Clutch Engage (ft-lbs): 345
• Torque @ Clutch Engage (ft-lbs): 332
• Torque Converter: 1.73
• Torque Converter: 2.05
• Static Loaded Radius (in): 15
• Static Loaded Radius (in): 17.4
• Max Speed For Gradeability: 75
