• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system
• Cruise control, steering wheel-mounted

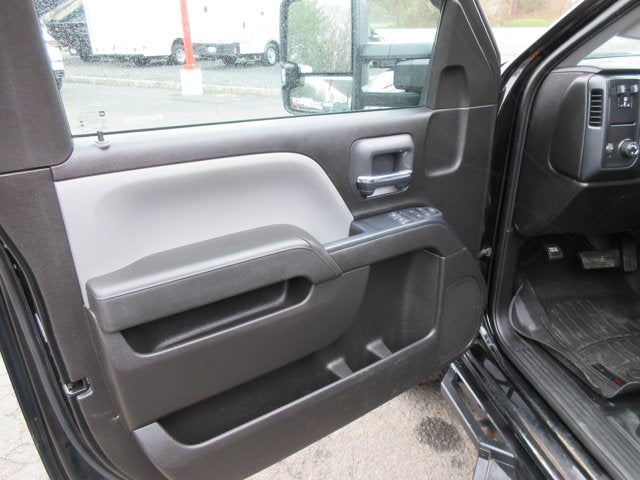

• Door locks, power
• Floor covering, Graphite-colored rubberized-vinyl
• Steering column, manual Tilt-Wheel

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power

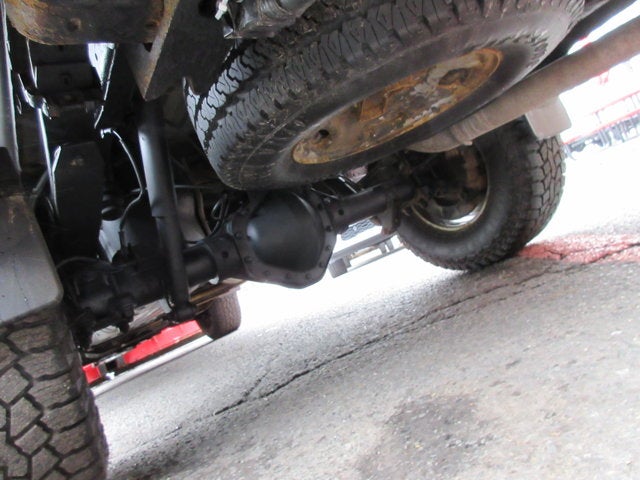

• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball with smart flow power steering system
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Trailer brake controller, integrated (Standard with (E63) pickup box. Available to order with (ZW9) pickup box delete.)

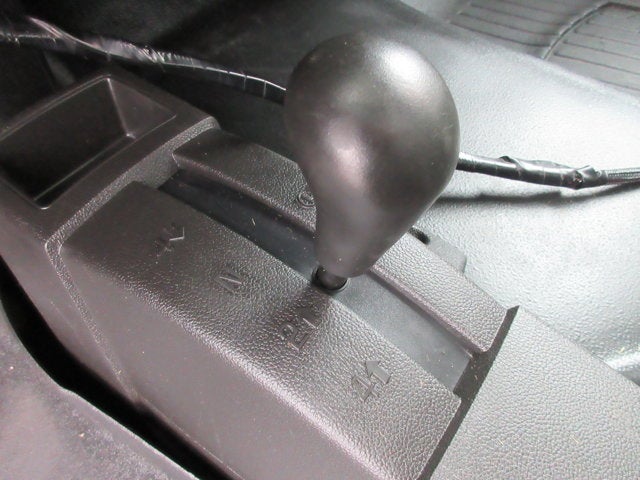

• Transfer case, with floor-mounted shifter (Included with 4WD models only.)

• Daytime Running Lamps with automatic exterior lamp control
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

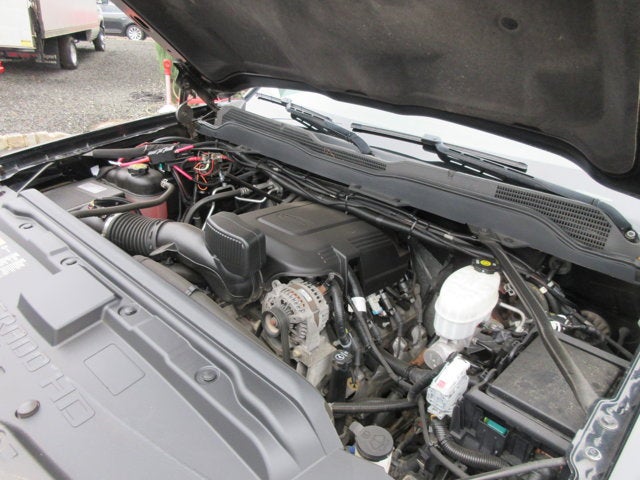

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI, E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)

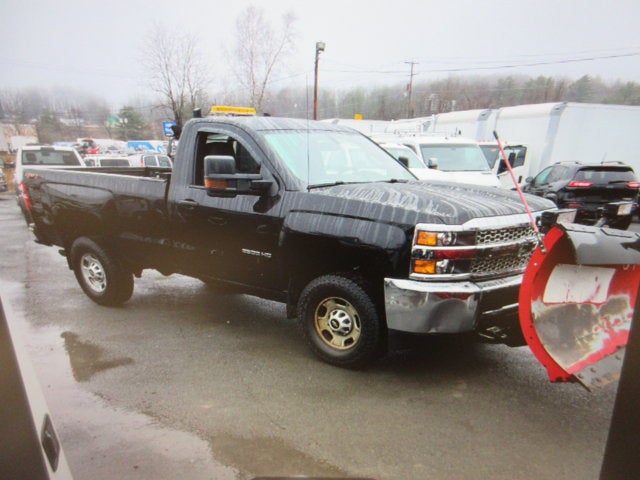

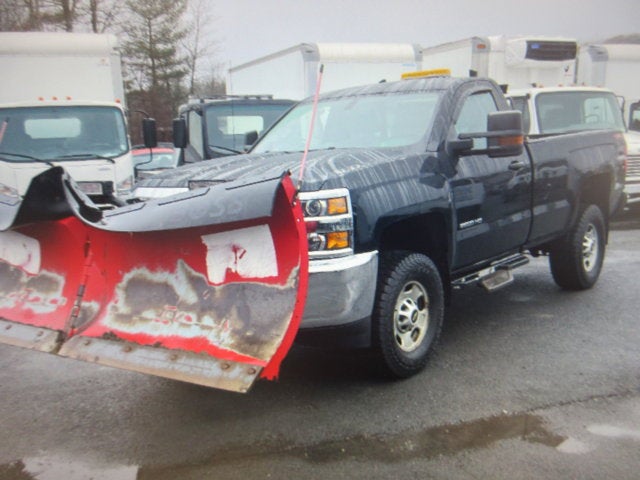

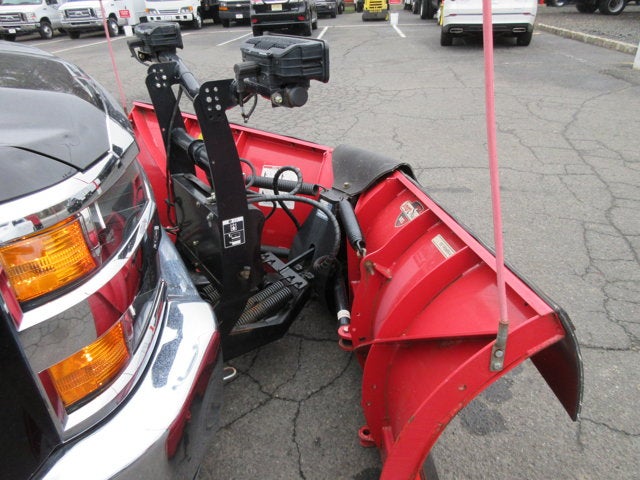

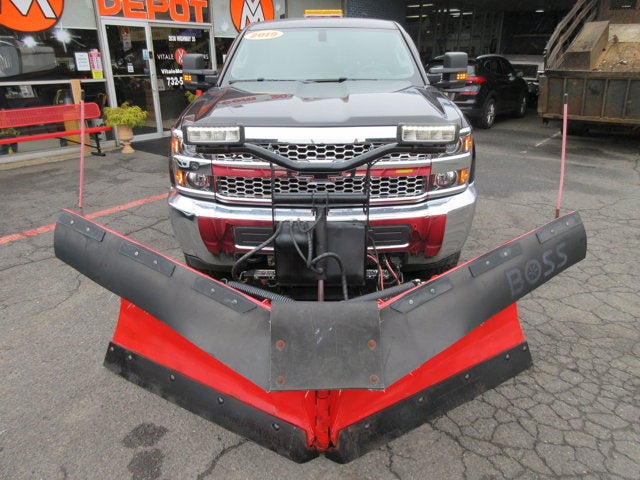

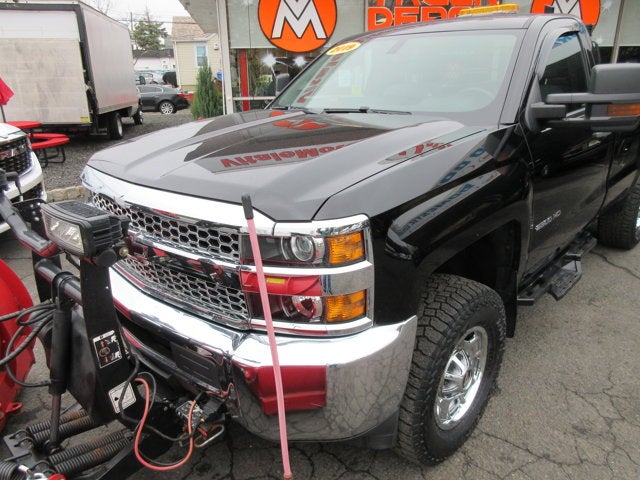

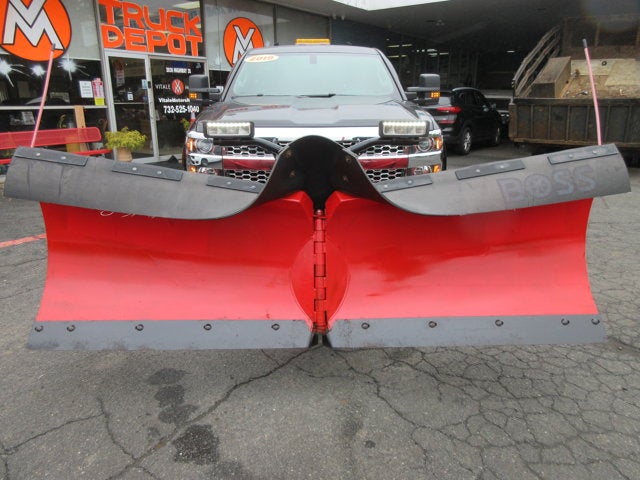

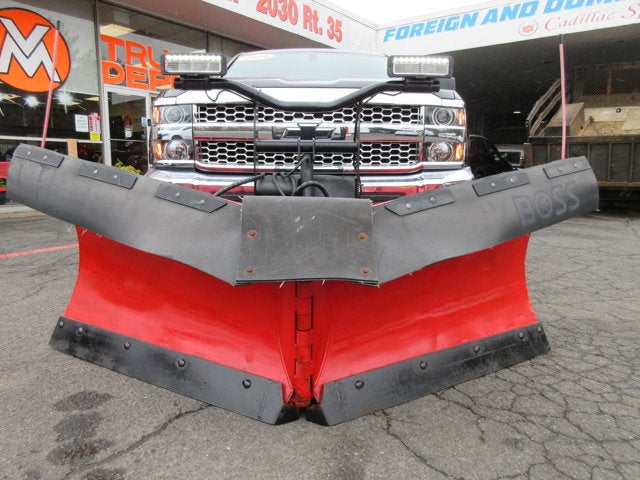

SNOW PLOW PREP PACKAGE

• includes (KW5) 220-amp alternator with gas or diesel engine
• (TRW) provision for cab roof mounted lamp/beacon
• (NZZ) underbody shields and Heavy-Duty front-springs

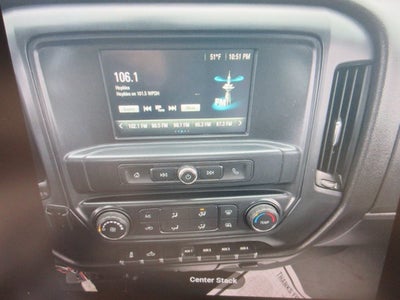

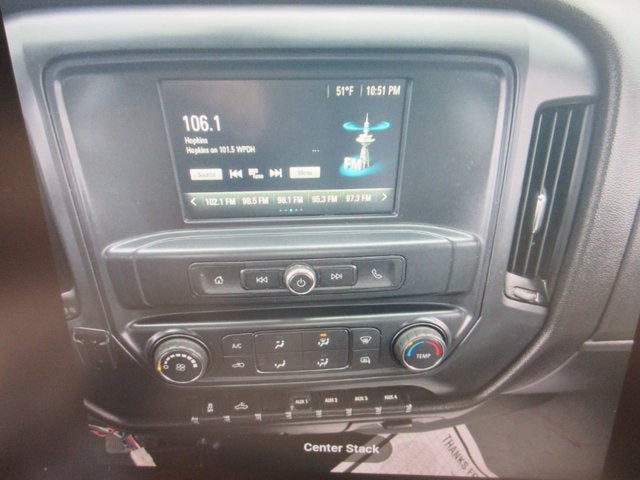

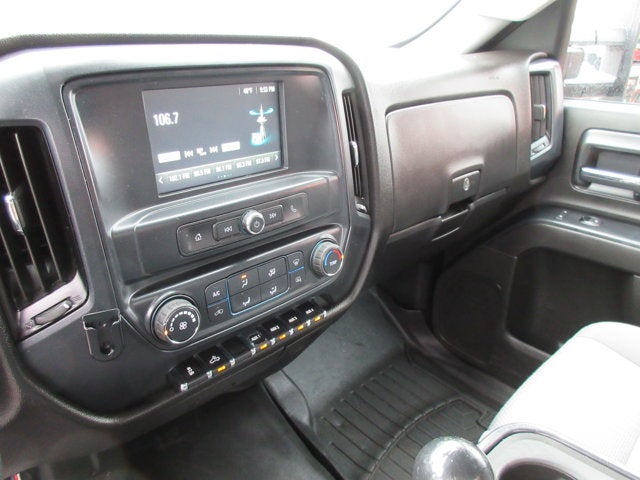

AUDIO SYSTEM, CHEVROLET INFOTAINMENT SYSTEM WITH 7" DIAGONAL COLOR TOUCH-SCREEN, AM/FM STEREO

• with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones. (STD)

WHEELS, 17" (43.2 CM) STEEL

• includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

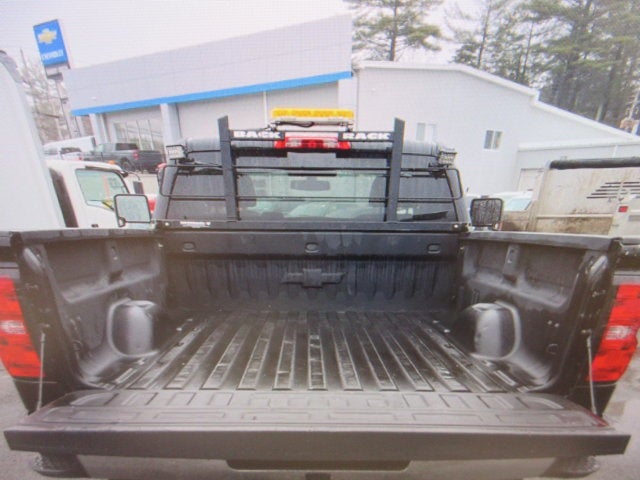

BED LINER, SPRAY-ON

• Pickup box bed liner with bowtie logo. Liner is permanently bonded to the truck bed providing a water tight seal. The textured
• non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails
• including tailgate
• front box top rail
• gauge hole plugs and lower tie down loops.

PICKUP BOX

• (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

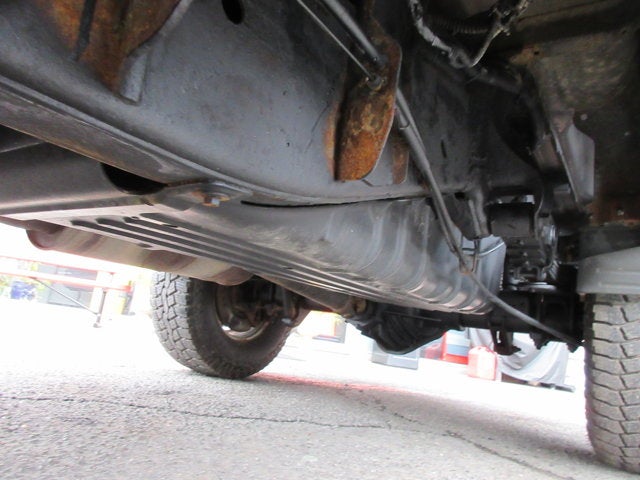

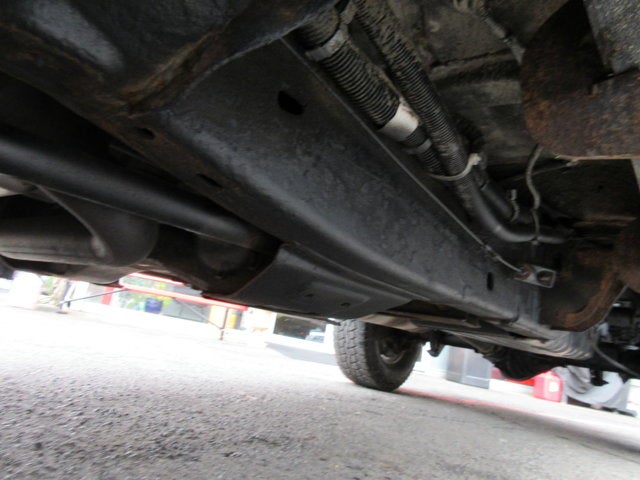

UNDERBODY SHIELD, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

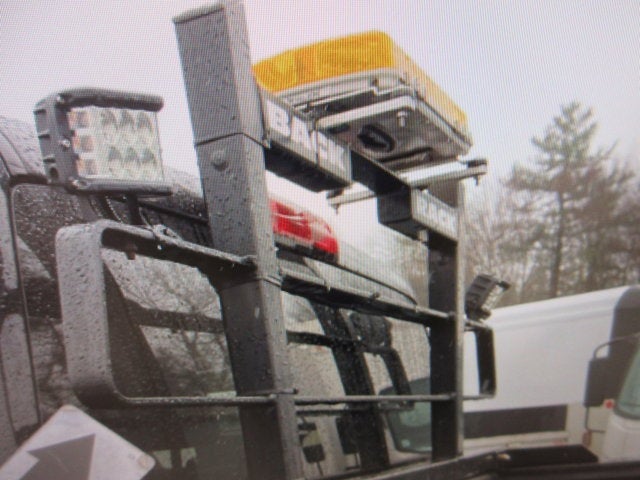

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp

UPFITTER SWITCHES, (4)

• Provides 4-30 amp circuits to facilitate installation of aftermarket electrical accessories

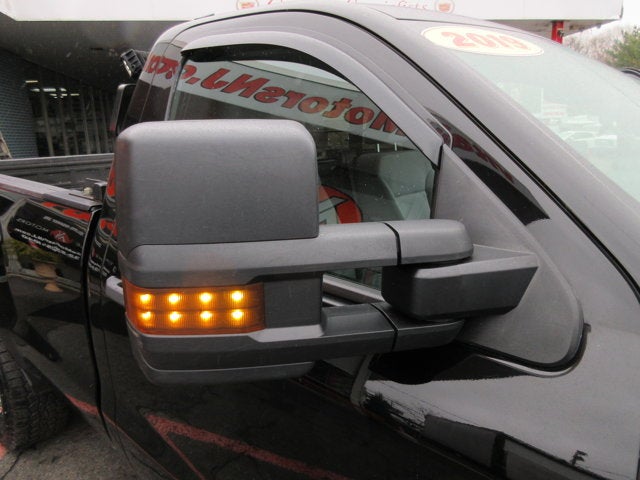

• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK; Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp Includes (DD8) auto-dimming inside rearview mirror.
• LICENSE PLATE KIT FRONT
• AIRBAG DEACTIVATION SWITCH FRONTAL PASSENGER-SIDE
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)

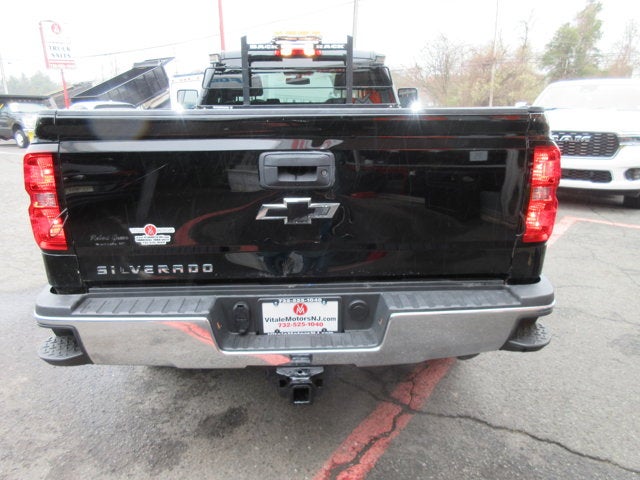

• REMOTE LOCKING TAILGATE

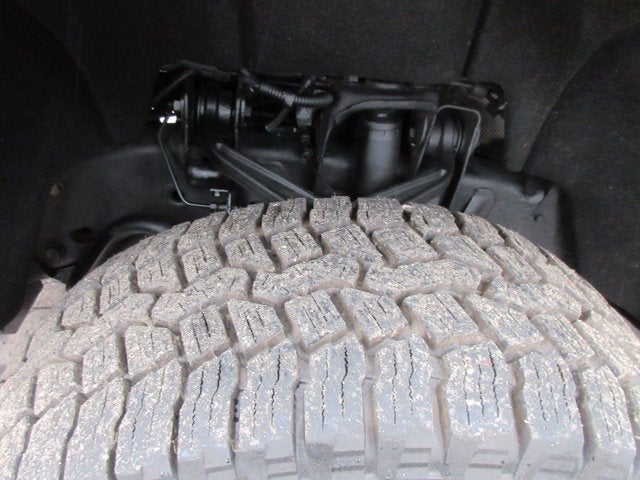

• TIRES LT265/70R17E ALL-TERRAIN BLACKWALL
• DARK ASH WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• SNOW PLOW PREP PACKAGE includes (KW5) 220-amp alternator with gas or diesel engine (TRW) provision for cab roof mounted lamp/beacon (NZZ) underbody shields and Heavy-Duty front-springs
• AUDIO SYSTEM CHEVROLET INFOTAINMENT SYSTEM WITH 7" DIAGONAL COLOR TOUCH-SCREEN AM/FM STEREO with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones. (STD)
• BLACK
• WHEELS 17" (43.2 CM) STEEL includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. (STD)
• GLASS DEEP-TINTED
• WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
• WT CONVENIENCE PACKAGE includes (AKO) tinted windows (KI4) 110V outlet (AQQ) Remote Keyless Entry and (A91) remote locking tailgate. Double Cab and Regular Cab includes (DPN) outside heated power-adjustable vertical trailering mirrors. Crew Cab includes (DL8) outside heated power-adjustable mirrors. Regular Cab models also includes (A31) power windows
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• BED LINER SPRAY-ON Pickup box bed liner with bowtie logo. Liner is permanently bonded to the truck bed providing a water tight seal. The textured non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails including tailgate front box top rail gauge hole plugs and lower tie down loops.
• PICKUP BOX (STD)

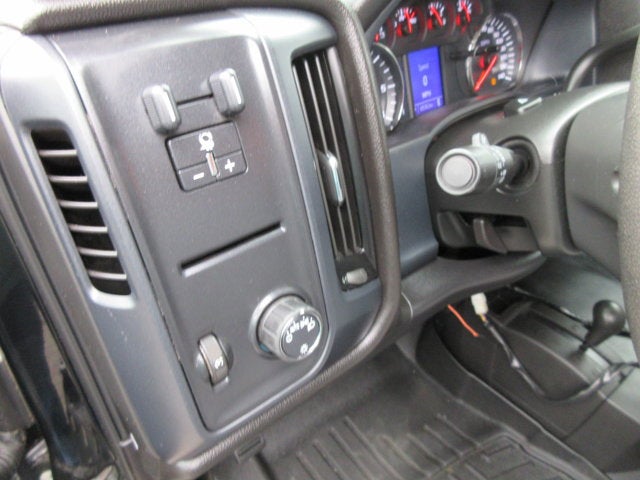

• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 4.10 RATIO
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• PAINT SOLID
• REMOTE KEYLESS ENTRY Includes (A91) remote locking tailgate.)
• UNDERBODY SHIELD FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• UPFITTER SWITCHES (4) Provides 4-30 amp circuits to facilitate installation of aftermarket electrical accessories

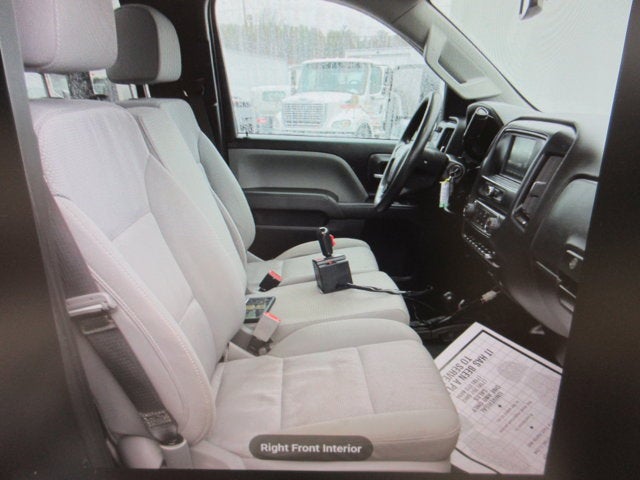

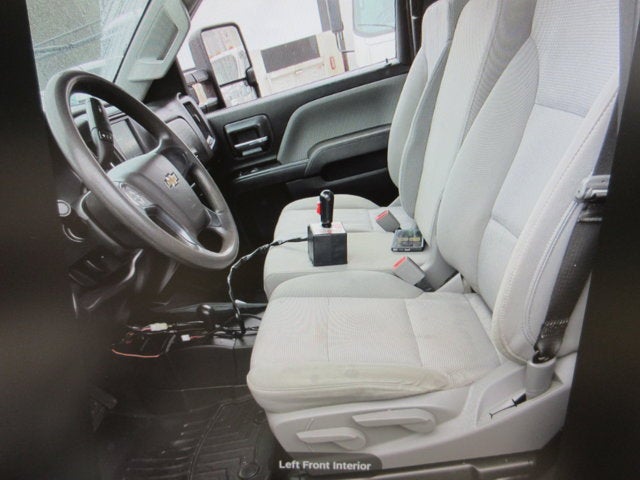

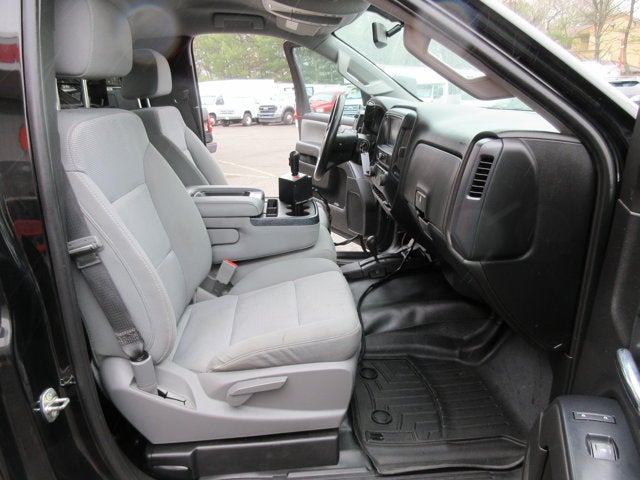

• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• ALTERNATOR 220 AMPS
• TIRE SPARE LT265/70R17E ALL-TERRAIN BLACKWALL
• POWER OUTLET 110-VOLT AC
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Tow Hitch
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Bluetooth® Connection
• Split Bench Seat
• Adjustable Steering Wheel
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Passenger Air Bag Sensor
• Back-Up Camera
• Driver Restriction Features
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3486
• Curb Weight - Rear (lbs): 2388

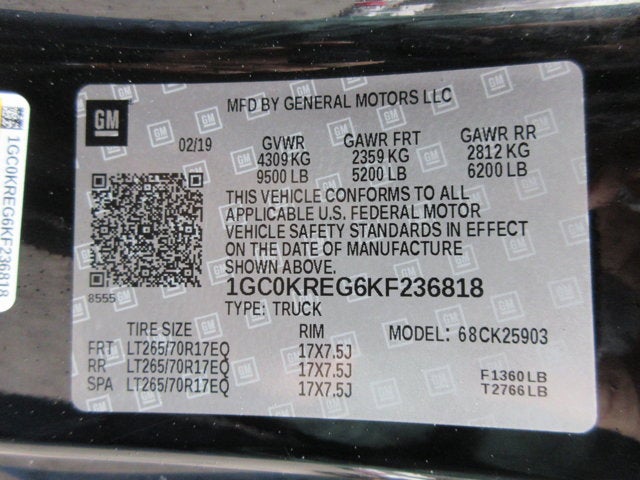

• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 21100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3625
• Maximum Trailering Capacity (lbs): 14500
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QXT
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QXT
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZXT
• Spare Tire Order Code: ZHQ
• Front Tire Size: LT265/70R17E
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT265/70R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT265/70R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 5200
• Rear Tire Capacity (lbs): 6200
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 45.9
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 133.6
• Length, Overall (in): 224.43
• Width, Max w/o mirrors (in): 80.12
• Height, Overall (in): 77.76
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 117.1
• Cab to Axle (in): 55.16
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.78
• Ground Clearance, Rear (in): 8.78
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.76
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 76.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 42.8
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 66.03
• Front Hip Room (in): 61.22
• Summary

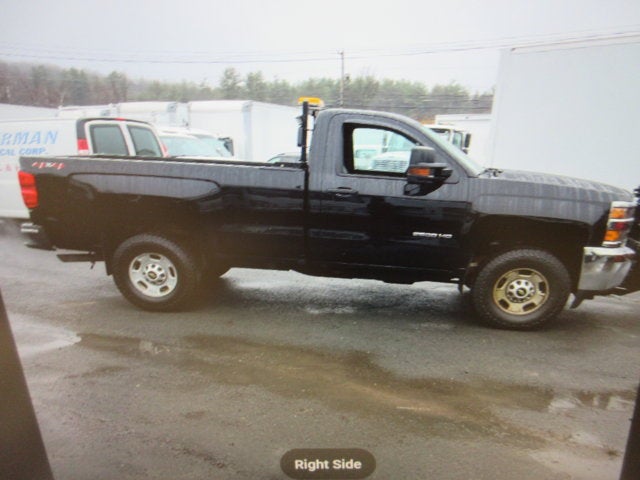

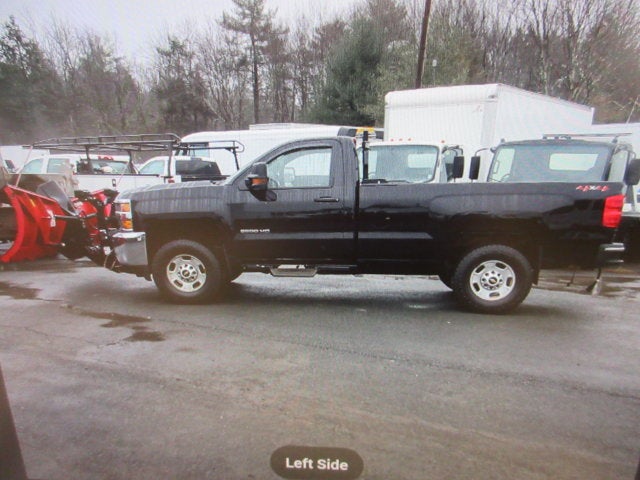

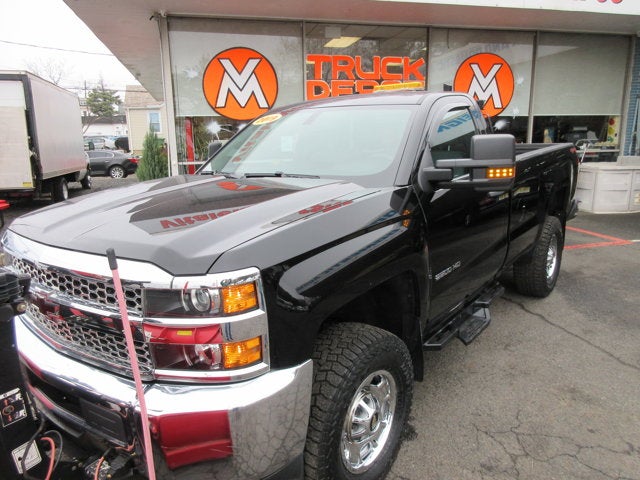

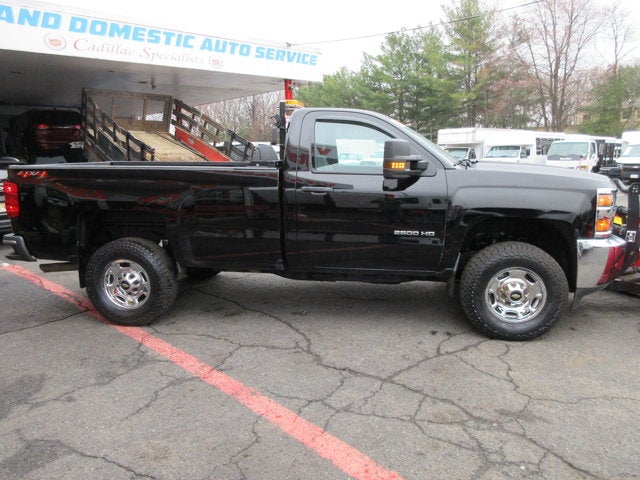

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Regular Cab Pickup
• Body Code: E63
