• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system feature, 4-speaker system
• Audio system, 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)

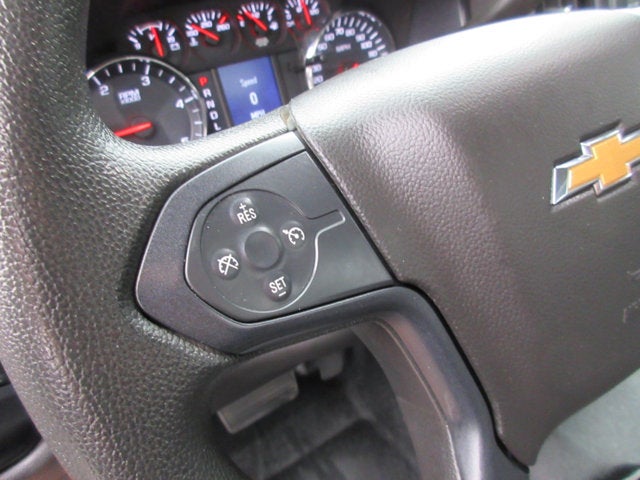

• Cruise control, steering wheel-mounted

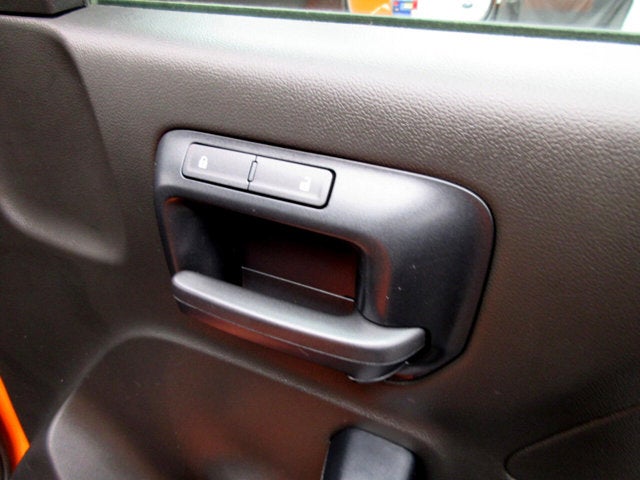

• Door locks, power

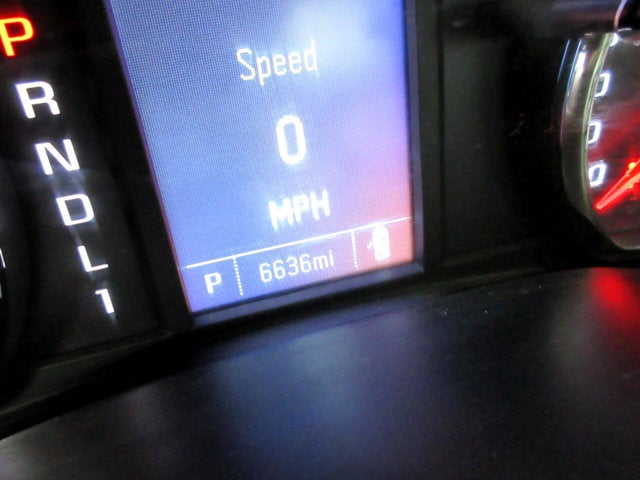

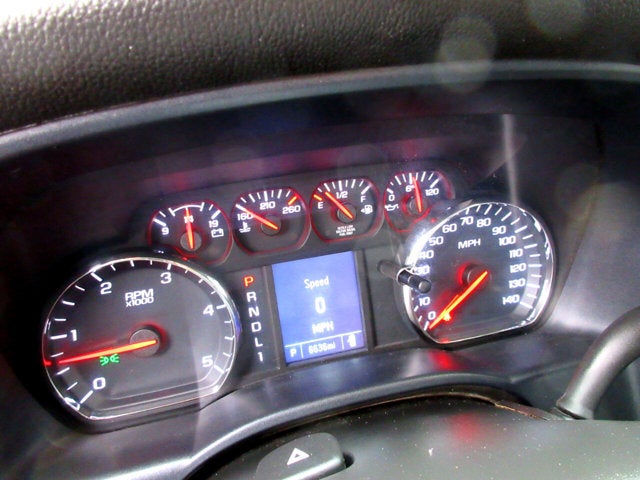

• Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Mirror, inside rearview manual day/night
• Seat Belt, Black
• Seat trim, Vinyl

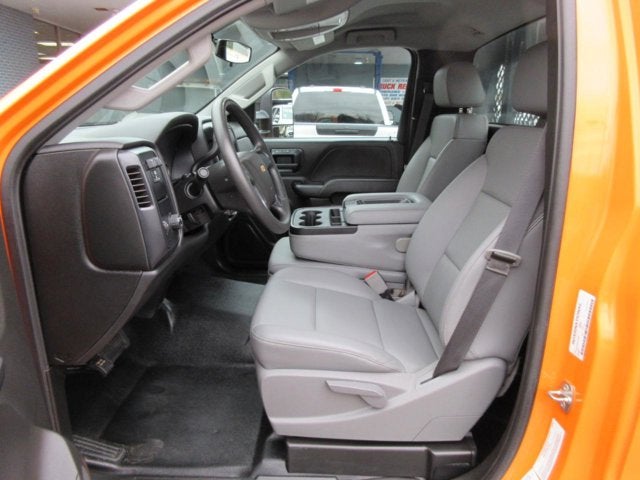

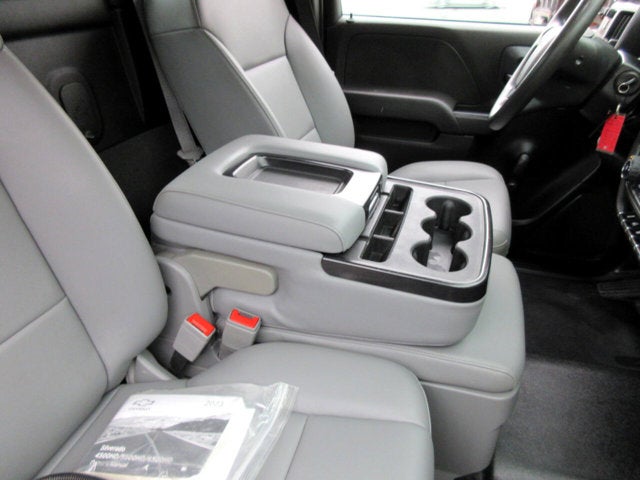

• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• SiriusXM, delete
• Speedometer, miles/kilometers
• Steering column, manual Tilt-Wheel
• Steering wheel, urethane

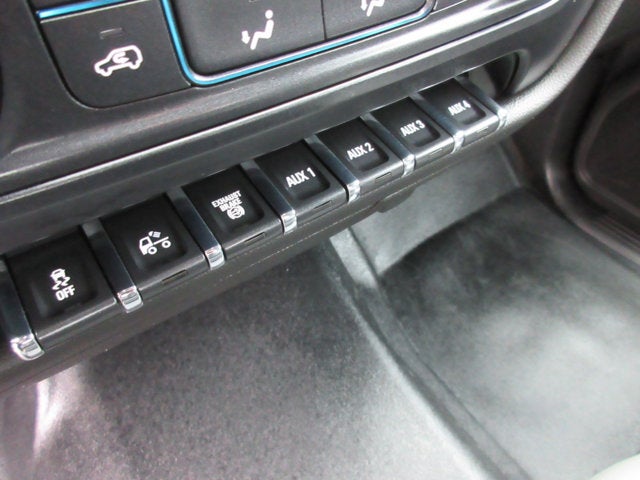

• Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• Visors, driver and front passenger, vinyl
• Windows, manual driver and front passenger

• Alternator, 150 amps
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Axle, Open rear axle, non-locking rear
• Batteries, heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Capped Fuel Fill
• Emissions, USA 50 State certified
• Exhaust brake
• Fuel tank, rear only, 40 gallon mounted between frame side rails and behind rear axle
• Fuel, diesel B20
• Incomplete vehicle
• Rear axle, 11,000 lb. (4,999 kg) Dana Spicer S14-110, single reduction
• Rear wheel drive
• Steering, power (Bosch S2 8014 Plus)

• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Brake, parking, driveline park brake system
• Daytime Running Lamps, with automatic exterior lamp control
• Horn, single-note
• OnStar, delete
• Traction control

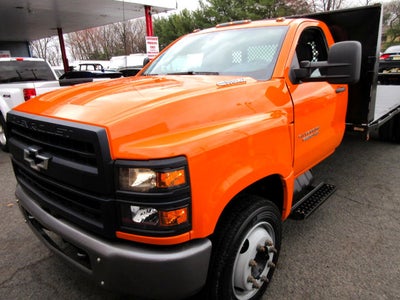

PAINTS, SOLID, TANGIER ORANGE

• All normally body colored non-sheet metal parts will be Black. May require extended lead time.

SPARE TIRE DELETE

• (STD)

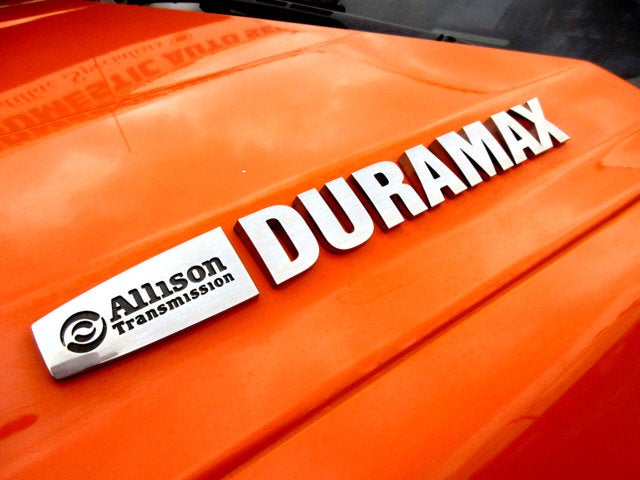

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb.-ft. torque @ 1600 rpm (STD)

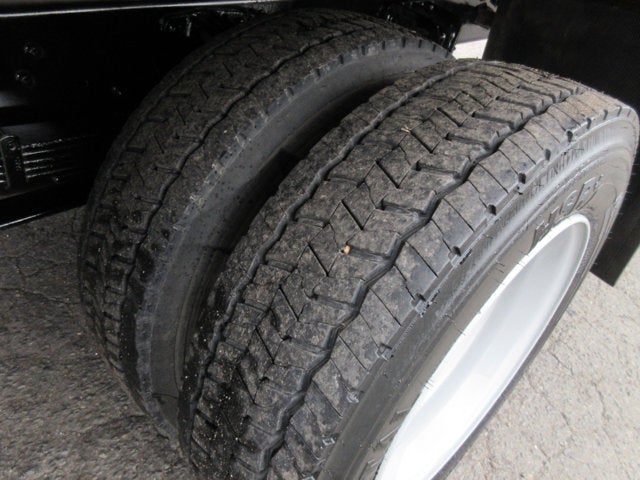

TIRES, REAR 225/70R19.5H BW HWY CONTINENTAL

• Max Axle Load: 15
• 500 lb.

TIRES, FRONT 225/70R19.5H BW HWY CONTINENTAL

• Max Axle Load: 8
• 000 lb.

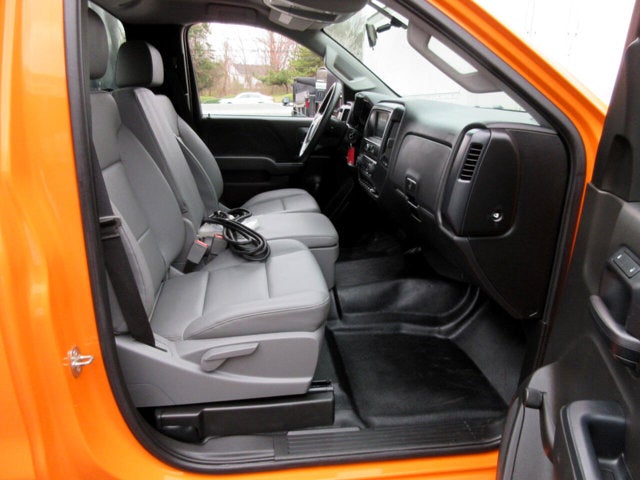

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

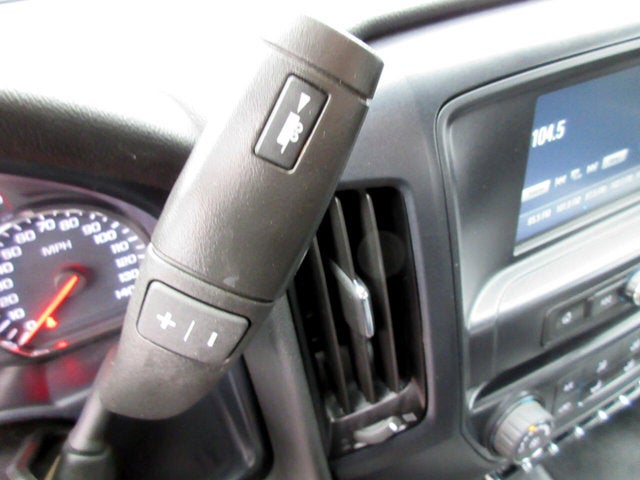

HIGHWAY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A2700HS

• ratios: 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 6TH Highway Series

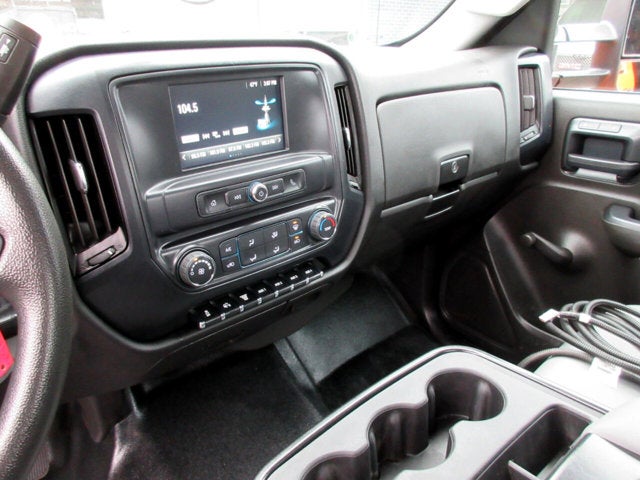

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones. Includes (UQ3) 6-speaker audio system.

REAR AXLE, 4.10 RATIO

• Max road speed: 79 MPH

• PAINTS SOLID TANGIER ORANGE All normally body colored non-sheet metal parts will be Black. May require extended lead time.
• SPARE TIRE DELETE (STD)
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
• 26 000 LB. GCWR (11 793 KG)
• LICENSE PLATE KIT FRONT
• REAR AXLE 15 500 LB. (7 031 KG) DANA SPICER S16-130 SINGLE REDUCTION
• 6-SPEAKER AUDIO SYSTEM
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb.-ft. torque @ 1600 rpm (STD)
• TIRES REAR 225/70R19.5H BW HWY CONTINENTAL Max Axle Load: 15 500 lb.
• RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
• PAINT SCHEME STYLE 1
• POWER TAKE-OFF (PTO) NOT INSTALLED

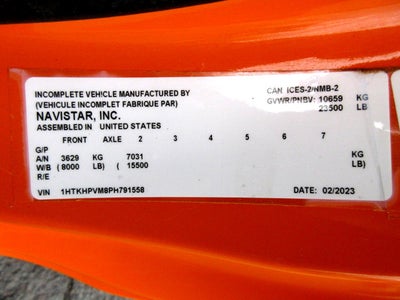

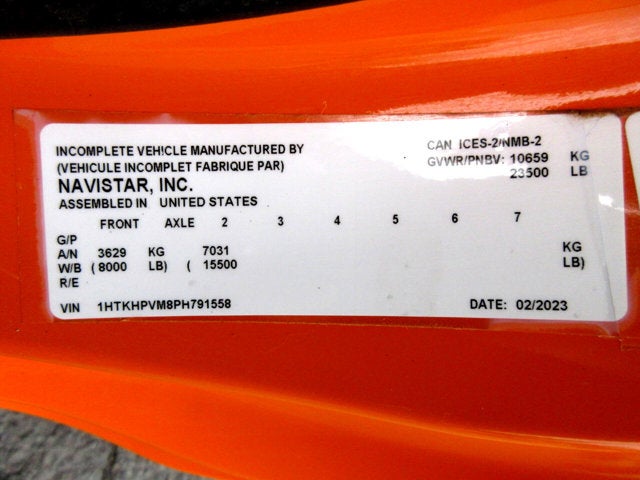

• GVWR 23 500 LB. (10 659 KG)
• TIRES FRONT 225/70R19.5H BW HWY CONTINENTAL Max Axle Load: 8 000 lb.
• FRONT SUSPENSION 8 000 LB. (3 629 KG) MULTI-LEAF INCLUDES SHOCK ABSORBERS

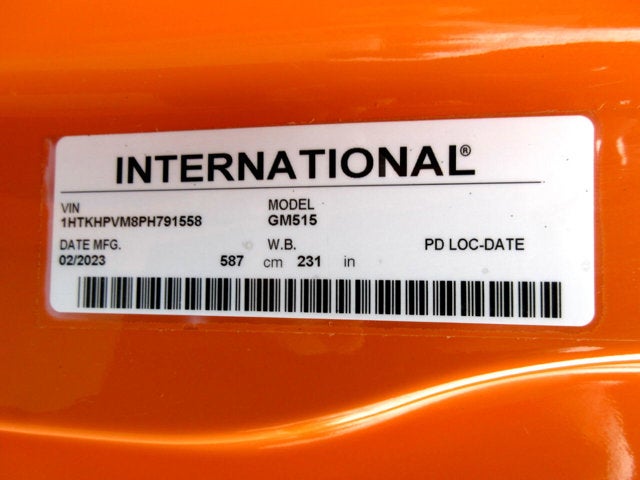

• WHEELBASE 231" (586.7 CM) 150" CA
• REAR SUSPENSION 15 500 LB. (7 031 KG) MULTI-LEAF VARI-RATE
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• EXHAUST SYSTEM RIGHT SIDE EXIT AHEAD OF REAR WHEELS
• FRONT AXLE 8 000 LB. DANA/SPICER D800-N "I"-BEAM NON-DRIVING
• HIGHWAY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A2700HS ratios: 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 6TH Highway Series
• AUDIO SYSTEM 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones. Includes (UQ3) 6-speaker audio system.
• WHEELS 19.5" X 6.75" STEEL GREY PAINTED 8-HOLES HUB PILOTED
• AXLE TO END OF FRAME 91"
• REAR AXLE 4.10 RATIO Max road speed: 79 MPH
• BUMPER FRONT GRAY

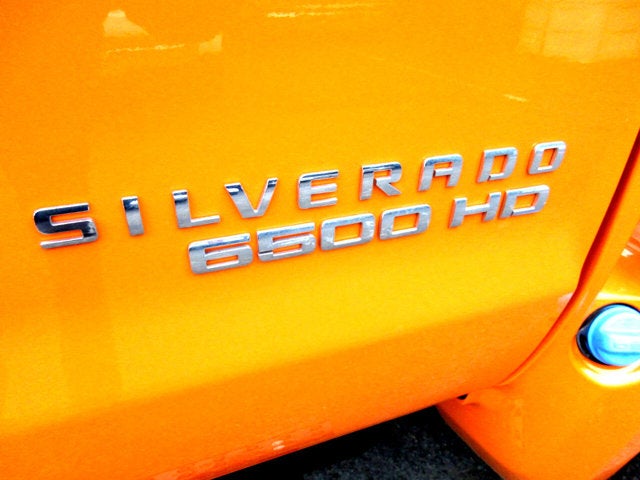

• 6500 HD SERIES
• Turbocharged
• Rear Wheel Drive
• Power Steering
• ABS
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season

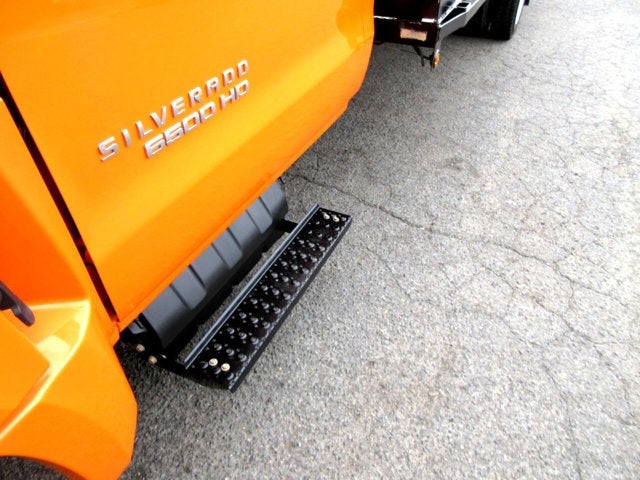

• Running Boards/Side Steps
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Vinyl Seats
• Adjustable Steering Wheel
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Traction Control
• Daytime Running Lights
• Automatic Headlights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Front Head Air Bag
• Passenger Air Bag On/Off Switch
• Back-Up Camera

• Vehicle
• Number of Passenger Doors: 2
• Front Frame Rating: - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 1100
• Cold Cranking Amps @ 0° F (2nd): 1100
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 48
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 8000
• Gross Axle Wt Rating - Front (lbs): 6250
• Gross Axle Wt Rating - Rear (lbs): 15500
• Gross Axle Wt Rating - Rear (lbs): 11000
• Curb Weight - Front (lbs): 4756
• Curb Weight - Front (lbs): 4704
• Curb Weight - Rear (lbs): 3245
• Curb Weight - Rear (lbs): 3081
• Curb Weight - Rear (lbs): 2856
• Curb Weight - Rear (lbs): 3164
• Curb Weight - Rear (lbs): 2803
• Gross Vehicle Weight Rating Cap (lbs): 23500
• Gross Vehicle Weight Rating Cap (lbs): 16500
• Gross Combined Wt Rating (lbs): 26000
• Suspension
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 8000
• Spring Capacity - Front (lbs): 6250
• Spring Capacity - Rear (lbs): 15500
• Spring Capacity - Rear (lbs): 11000
• Axle Type - Front: Dana Spicer I-Beam
• Axle Type - Rear: Dana Spicer Single Reduction
• Axle Capacity - Front (lbs): 8000
• Axle Capacity - Front (lbs): 6250
• Axle Capacity - Rear (lbs): 15500
• Axle Capacity - Rear (lbs): 11000
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 50.8
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.54
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.54
• Tires
• Front Tire Order Code: XEK
• Front Tire Order Code: XEY
• Rear Tire Order Code: YAS
• Rear Tire Order Code: YEY

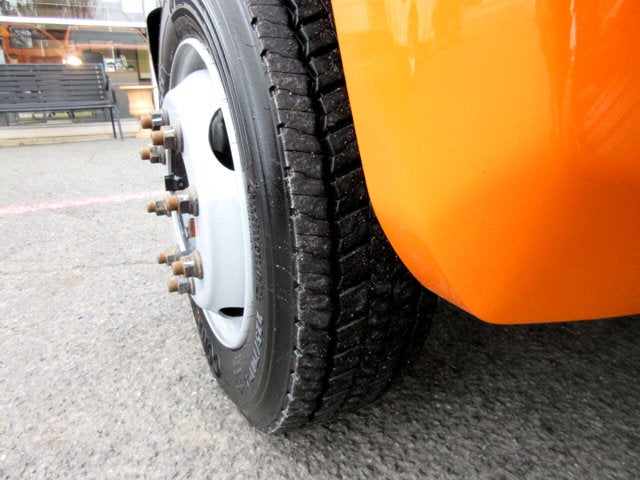

• Front Tire Size: 225/70R19.5H
• Front Tire Size: 225/70R19.5G
• Rear Tire Size: 225/70R19.5H
• Rear Tire Size: 225/70R19.5G
• Front Tire Capacity (lbs): 8000
• Front Tire Capacity (lbs): 7940
• Rear Tire Capacity (lbs): 15500
• Rear Tire Capacity (lbs): 15000
• Revolutions/Mile @ 45 mph - Front: 645
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: 645
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 0
• Wheels
• Front Wheel Size (in): 19.5 x 6.75
• Rear Wheel Size (in): 19.5 x 6.75
• Front Wheel Offset (mm): - TBD -
• Rear Wheel Offset (mm): - TBD -
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Bolt Pattern: 8 Hole JIS 10.83"
• Rear Bolt Pattern: 8 Hole JIS 10.83"
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.6
• Steering Ratio (:1), At Lock: 19.6
• Turning Diameter - Curb to Curb (ft): 63.7
• Turning Diameter - Curb to Curb (ft): 41.2
• Turning Diameter - Wall to Wall (ft): 65.3
• Turning Diameter - Wall to Wall (ft): 42.8
• Frame
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Fuel Tank Location: Behind Rear Axle
• Exterior Dimensions
• Wheelbase (in): 231
• Wheelbase (in): 141
• Length, Overall (in): 356.0
• Length, Overall (in): 224.4
• Width, Max w/o mirrors (in): 92.7
• Height, Overall (in): 82.49
• Height, Overall (in): 82.95
• Overhang, Front (in): 34.4
• Overhang, Rear w/o bumper (in): 91
• Overhang, Rear w/o bumper (in): 49
• Front Bumper to Back of Cab (in): 115.47
• Cab to Axle (in): 150
• Cab to Axle (in): 59.84
• Cab to End of Frame (in): 240.6
• Cab to End of Frame (in): 109.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 34.1
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -

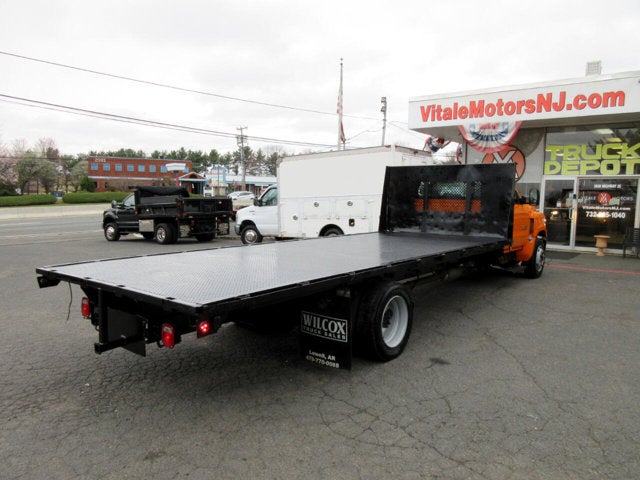

• Body Length Default Value (ft): 19
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 42.8
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 60.75
• Summary

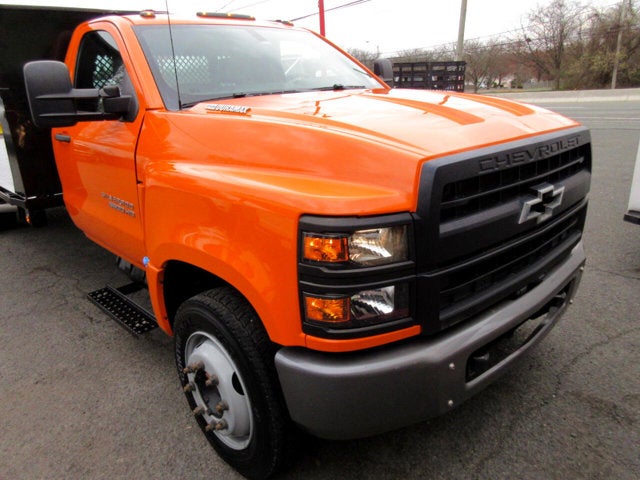

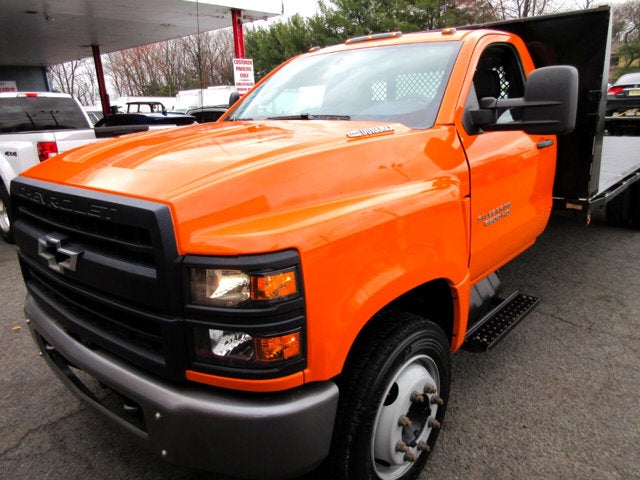

• Vehicle Name: Chevrolet Silverado MD
• Body Style: Regular Cab Chassis Cab
• Medium Duty Performance
• Driver Ratio: 1
• Torque @ Clutch Engage (ft-lbs): - TBD -
• Torque Converter: 1.764
• Static Loaded Radius (in): 15.1
• Static Loaded Radius (in): - TBD -
• Max Speed For Gradeability: 79
