• Air conditioning, single-zone manual
• Assist handles, driver and right-front passenger
• Floor covering, Black rubberized-vinyl front
• Headliner, cloth, over driver and passenger
• Heater and defogger with front and side window defoggers
• Lighting, interior with dome light and door handle-activated switches
• Oil life monitor
• Power outlet, 120-volt
• Seating arrangement, driver and front passenger high-back bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal airbag.)
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Alternator, 150 amps
• Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Incomplete vehicle certification
• Rear axle, 3.42 ratio (Requires (R04) single rear wheel configuration.)
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

• Airbag deactivation switch, frontal passenger-side (Not available with (AJ3) frontal, driver-side only airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps
• Hill Start Assist
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.)

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM, HEAD RESTRAINTS AND INBOARD ARMRESTS

• Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)

BATTERY, 770 COLD-CRANKING AMPS PRIMARY, ISOLATED 2ND HEAVY-DUTY 770 COLD-CRANKING AMPS

• allows 2nd battery to be used when the vehicle is not running without affecting ability to start the vehicle

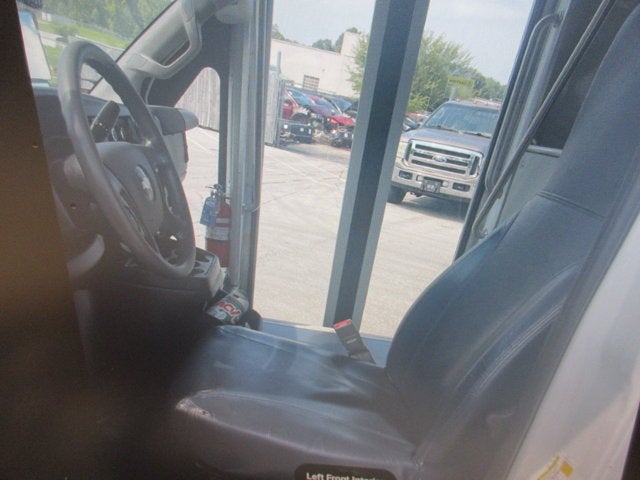

SEATING ARRANGEMENT, DRIVER-ONLY HIGH-BACK BUCKET, ADJUSTABLE

• includes head restraint and vinyl or cloth trim (Includes (AJ3) driver-side only frontal airbag.

TIRES, FRONT LT225/75R16E ALL-SEASON, BLACKWALL

• Jack and spare tire equipment bracket are not included.)

TIRES, REAR LT225/75R16E ALL-SEASON, BLACKWALL

• Jack and spare tire equipment bracket are not included.)

WIRING JUNCTION BLOCK EQUIPMENT ACCESSORY

• includes 2-30 amp circuits

FUEL TANK CAPACITY, APPROXIMATELY 57 GALLONS (215.7L).

• As part of the base design
• includes the auxiliary feed fuel fitting and in tank return line.

CIRCUITS, STOP/TURN SIGNAL

• body control module calibration that allows the stop and turn signals to be operated separately

BODY, STANDARD

• (STD)

DRIVER CONVENIENCE PACKAGE

• includes Tilt-Wheel and (K34) cruise control

CONSOLE, ENGINE COVER

• with swing-out storage bin

AUDIO SYSTEM, RADIO PROVISIONS ONLY.

• Includes alarm warning chimes
• radio wiring harness
• radio antenna and 2 front door speakers

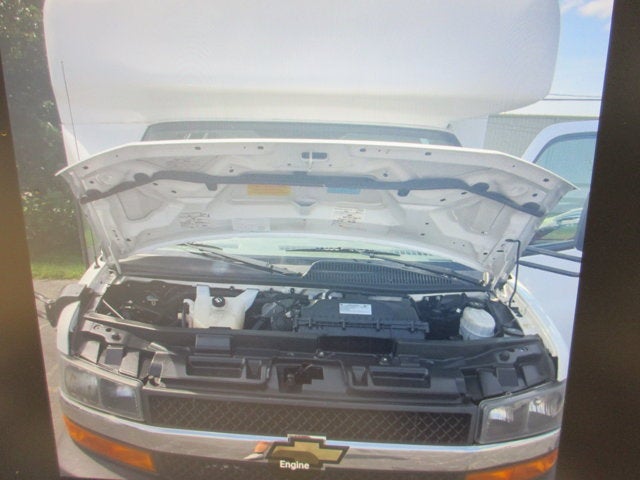

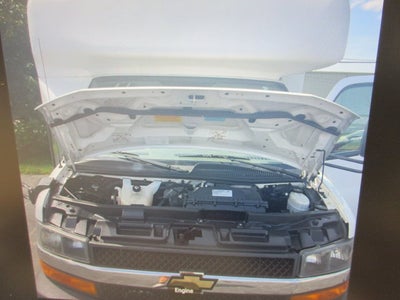

ENGINE, 6.6L V8

• with Direct Injection and Variable Valve Timing
• gasoline
• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD) (Includes external oil cooler.

WORK VAN PREFERRED EQUIPMENT GROUP

• Includes standard equipment

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking
• Powertrain Grade Braking
• and Tap-Up/Tap-Down Driver Shift Control (STD)

WHEEL FINISH, PAINTED WHITE.

• White-painted wheels in lieu of standard Gray-painted wheels.

BODY, SOFT-MOUNT DONUT AND BOLT

• (for mounting Upfit body to chassis)

SHUTTLE BUS PACKAGE

• Includes (ZR7) Chrome Appearance Package
• (BNC) soft-mount donut and bolt
• (ZQ3) Driver Convenience Package
• (V4D) stop/turn signal circuits
• (ENC) HVAC system auxiliary rear heat provisions
• (KW5) 220 amp alternator
• (TP3) dual batteries (770 cca primary and 770 cca isolated) and (9L7) equipment accessory wiring junction block.

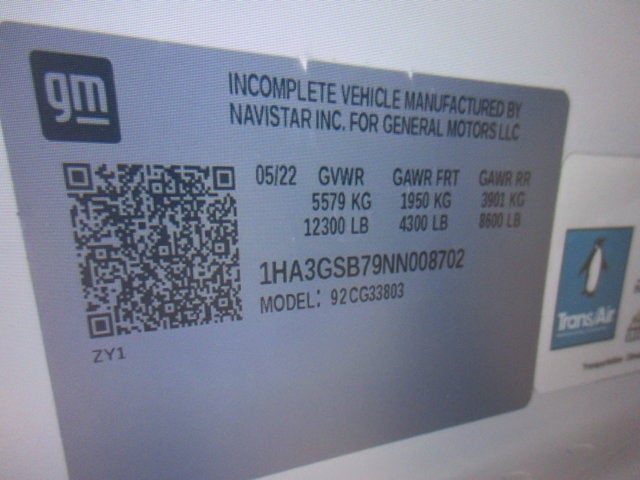

GVWR, 12,300 LBS. (5579 KG)

• (Includes (R05) dual rear wheel configuration. When ordered with (L8T) 6.6L gas V8 engine and (NHT) Enhanced Towing Performance Package includes (GT5) 4.10 axle ratio.

CHROME APPEARANCE PACKAGE

• (Includes (V46) front chrome bumper and (V22) chrome grille.

• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM HEAD RESTRAINTS AND INBOARD ARMRESTS Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)
• HVAC SYSTEM AUXILIARY REAR HEATER PROVISIONS
• ONSTAR DELETE
• CRUISE CONTROL
• BATTERY 770 COLD-CRANKING AMPS PRIMARY ISOLATED 2ND HEAVY-DUTY 770 COLD-CRANKING AMPS allows 2nd battery to be used when the vehicle is not running without affecting ability to start the vehicle
• SUMMIT WHITE
• SEATING ARRANGEMENT DRIVER-ONLY HIGH-BACK BUCKET ADJUSTABLE includes head restraint and vinyl or cloth trim (Includes (AJ3) driver-side only frontal airbag.
• GRILLE CHROME
• DOOR PASSENGER SIDE DELETE UPFITTER OPTION
• TIRES FRONT LT225/75R16E ALL-SEASON BLACKWALL Jack and spare tire equipment bracket are not included.)
• REAR AXLE 3.73 RATIO
• TIRES REAR LT225/75R16E ALL-SEASON BLACKWALL Jack and spare tire equipment bracket are not included.)
• WHEEL CONFIGURATION REAR DUAL
• WIRING JUNCTION BLOCK EQUIPMENT ACCESSORY includes 2-30 amp circuits
• FUEL TANK CAPACITY APPROXIMATELY 57 GALLONS (215.7L). As part of the base design includes the auxiliary feed fuel fitting and in tank return line.
• CIRCUITS STOP/TURN SIGNAL body control module calibration that allows the stop and turn signals to be operated separately
• BODY STANDARD (STD)
• WHEELS 6 - 16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG PAINTED STEEL HEAVY DUTY
• ALTERNATOR 220 AMPS
• DRIVER CONVENIENCE PACKAGE includes Tilt-Wheel and (K34) cruise control
• CONSOLE ENGINE COVER with swing-out storage bin
• AUDIO SYSTEM RADIO PROVISIONS ONLY. Includes alarm warning chimes radio wiring harness radio antenna and 2 front door speakers
• AIRBAG FRONTAL DRIVER SIDE ONLY
• ENGINE 6.6L V8 with Direct Injection and Variable Valve Timing gasoline (401 hp [299 kW] @ 5200 rpm 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD) (Includes external oil cooler.
• PAINT SOLID
• WORK VAN PREFERRED EQUIPMENT GROUP Includes standard equipment
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking Powertrain Grade Braking and Tap-Up/Tap-Down Driver Shift Control (STD)
• WHEEL FINISH PAINTED WHITE. White-painted wheels in lieu of standard Gray-painted wheels.
• BODY SOFT-MOUNT DONUT AND BOLT (for mounting Upfit body to chassis)
• MIRROR INSIDE REARVIEW MANUAL DAY/NIGHT
• BUMPER FRONT CHROME WITH STEP-PAD
• SHUTTLE BUS PACKAGE Includes (ZR7) Chrome Appearance Package (BNC) soft-mount donut and bolt (ZQ3) Driver Convenience Package (V4D) stop/turn signal circuits (ENC) HVAC system auxiliary rear heat provisions (KW5) 220 amp alternator (TP3) dual batteries (770 cca primary and 770 cca isolated) and (9L7) equipment accessory wiring junction block.
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM
• GVWR 12 300 LBS. (5579 KG) (Includes (R05) dual rear wheel configuration. When ordered with (L8T) 6.6L gas V8 engine and (NHT) Enhanced Towing Performance Package includes (GT5) 4.10 axle ratio.
• CHROME APPEARANCE PACKAGE (Includes (V46) front chrome bumper and (V22) chrome grille.
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Intermittent Wipers
• WiFi Hotspot
• Requires Subscription
• Bucket Seats
• Bucket Seats
• Trip Computer
• Immobilizer
• Power Outlet
• Power Outlet
• A/C
• Rear Defrost

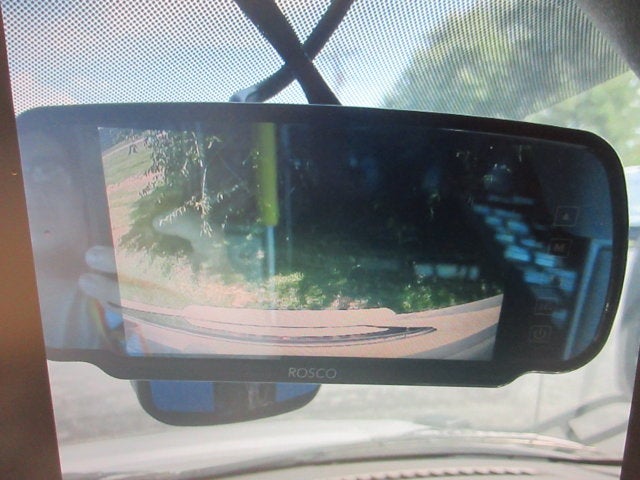

• Back-Up Camera
• Daytime Running Lights
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Passenger Air Bag On/Off Switch
• Requires Subscription
• Back-Up Camera
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 770
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3203
• Curb Weight - Rear (lbs): 1762
• Gross Vehicle Weight Rating Cap (lbs): 12300
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Gross Combined Wt Rating (lbs): 16000
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.58 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: XHF
• Front Tire Order Code: XLP
• Rear Tire Order Code: YHF
• Rear Tire Order Code: YLP
• Front Tire Size: LT225/75R16E
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT225/75R16E
• Rear Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2335
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 2150
• Rear Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 57
• Fuel Tank Capacity, Approx (gal): 32
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 159
• Length, Overall (in): 267.15
• Width, Max w/o mirrors (in): 94.53
• Width, Max w/o mirrors (in): - TBD -
• Height, Overall (in): 83.78
• Overhang, Front (in): 39.7
• Front Bumper to Back of Cab (in): 98.7
• Cab to Axle (in): 100
• Cab to End of Frame (in): 168.45
• Ground to Top of Frame (in): 30.08
• Frame Width, Rear (in): 42
• Ground Clearance, Front (in): 9.3
• Ground Clearance, Rear (in): 8.35
• Interior Dimensions
• Passenger Capacity: 1
• Passenger Capacity: 2
• Front Head Room (in): 40.85
• Front Leg Room (in): 41.35
• Front Shoulder Room (in): 68.85
• Front Hip Room (in): 65.48
• Summary

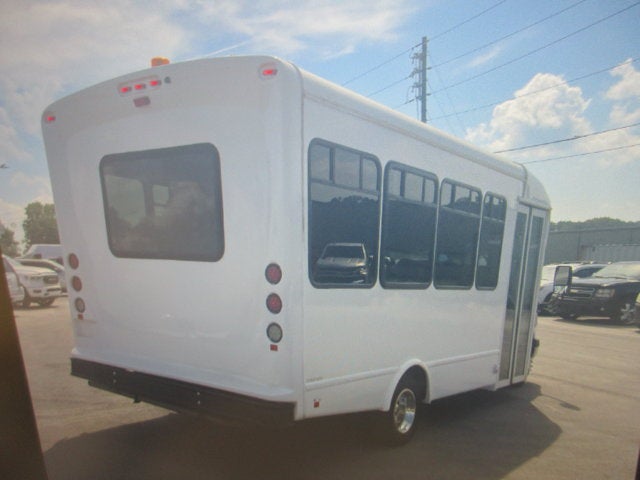

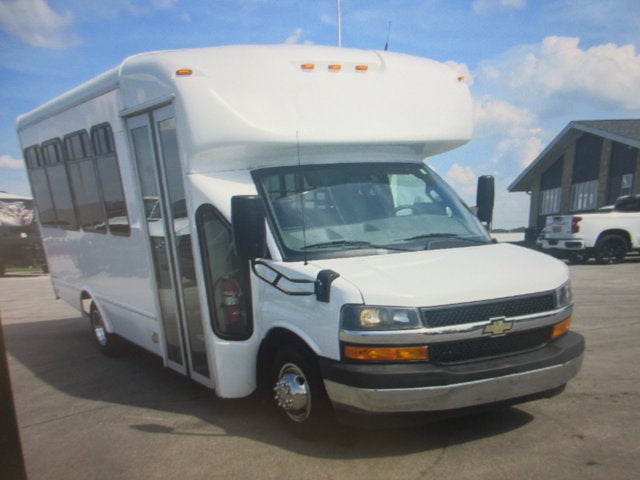

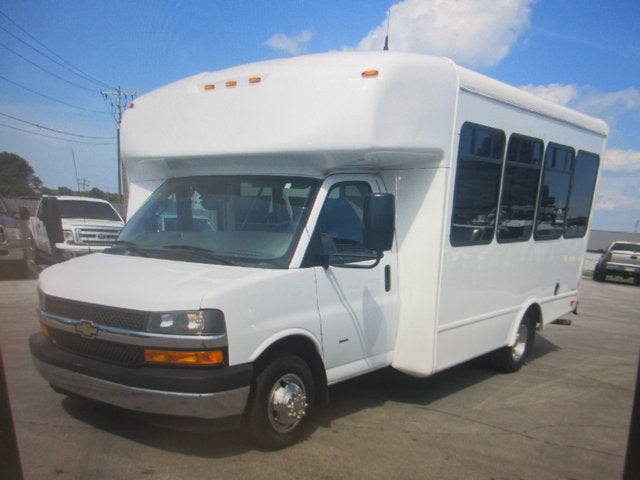

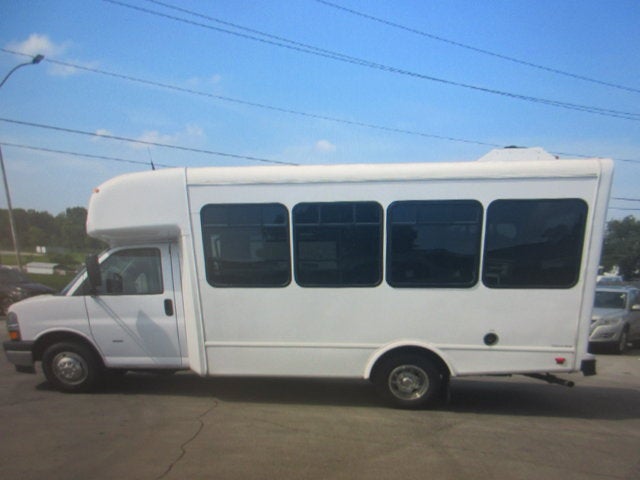

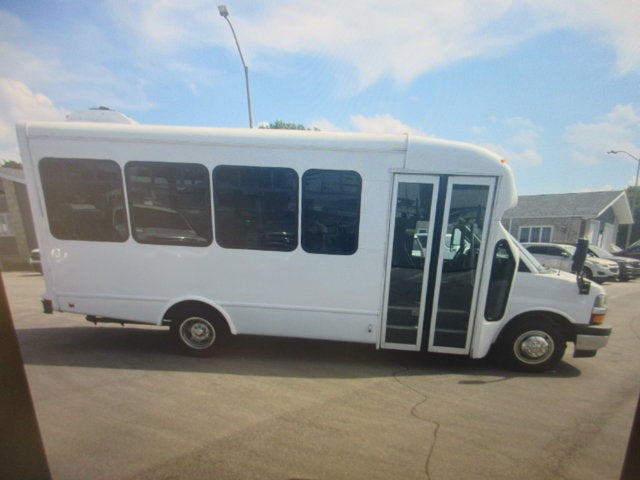

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Body Style: 159.0" WB
• Body Code: ZW9
