• Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning
• Cloth headliner
• Coat hooks (2) located on cab back panel
• Headlamp warning buzzer
• Interior trim, Very Dark Pewter (Requires 69U Very Dark Pewter Vinyl or 69C Very Dark Pewter Cloth)
• Molded vinyl floor covering
• Powerpoints - one in-cab power source (in addition to optional cigarette lighter) for electrical plug-in accessories
• Seat belt warning indicator
• Seat trim, vinyl, Very Dark Pewter
• Seat, driver, high-back bucket, fixed height, manual adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
• Seat, passenger, high-back bucket, fixed height, manual back angle adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out

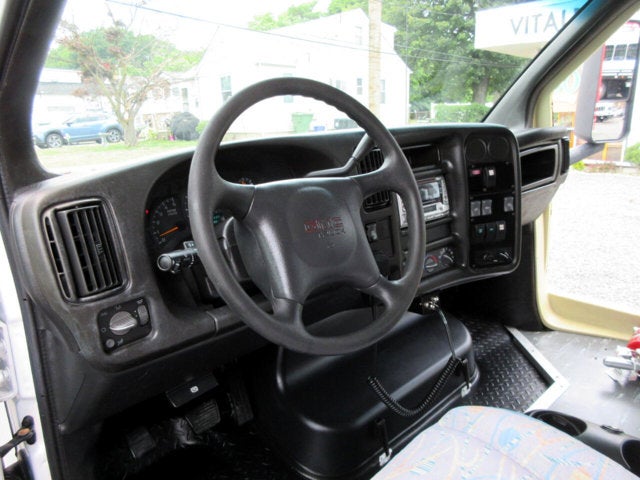

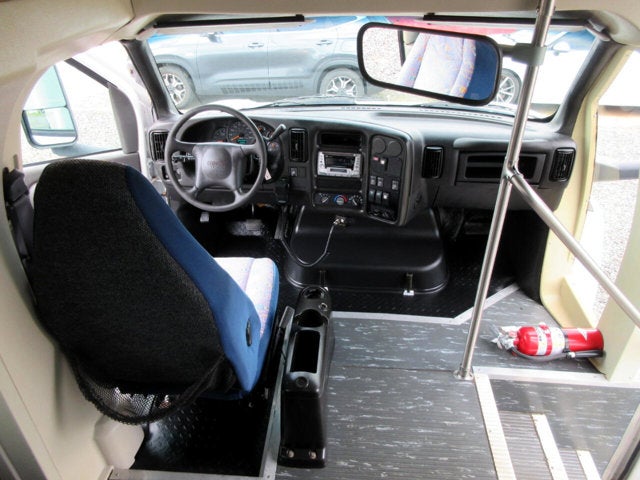

• Steering wheel, simulated leather
• Steering, power - ZF variable ratio power
• Sunshades, passenger side and driver side, vinyl-covered

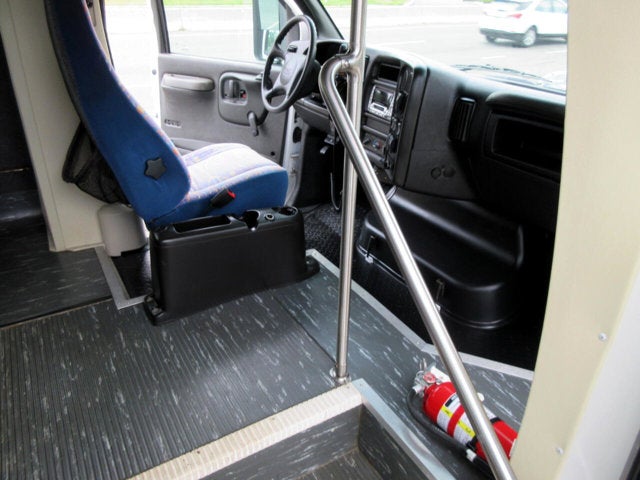

• Trim console - located next to driver's seat, and two cupholder
• Two sided single common key for doors and ignition
• Underhood bodybuilder connections accessory power supply - Provides 12V power supply from the battery with two separate 30 amp fused circuits

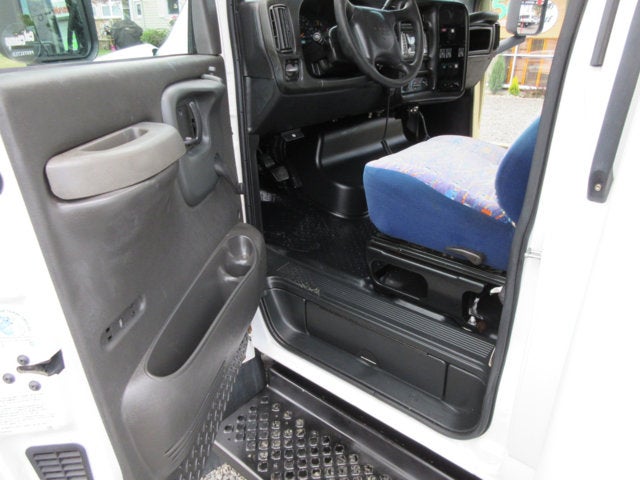

• Vinyl door trim panels - with storage pocket on front doors, beverage holders, and reflector on all doors
• Warning tone, key-in-ignition

• Air cleaner, dry type
• Brakes, front, power, 4-wheel disc, 4 channel ABS 4-piston - (See Front Axle options more more details)
• Brakes, rear, power, 4-wheel disc, 4 channel ABS 2-piston - (See Rear Axle options for more detail)
• Cooling, anti-freeze protection temperature - -40 degrees F (-40 degrees C)

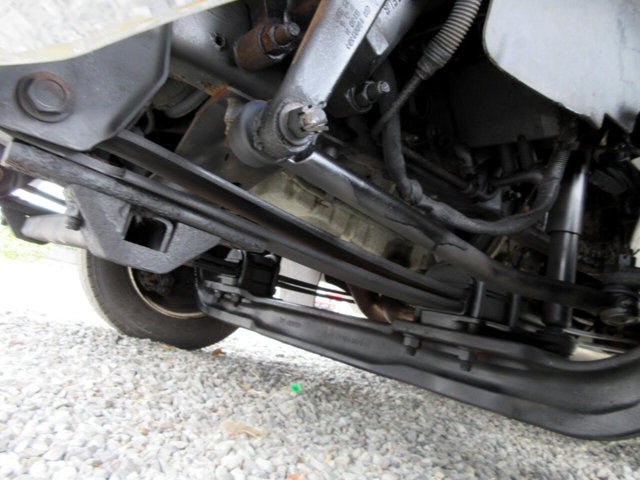

• Front axle, 7000 lbs. (3175 kg) capacity - I-beam Wide-trac. Up to 53 degree turn angle, (Includes 4-piston brake apply calipers) (Requires GZG or GZJ GVWRs)
• Front shock absorber, diameter 1.375" (35mm)
• Front stabilizer bar, 2" x 2" square tube (5 cm x 5 cm)
• Front suspension, tapered leaf, 7000 lbs. (3175 kg) capacity (includes stabilizer) (Requires GZG or GZJ GVWRs)
• Front tire manufacturer code, Goodyear (Requires S4A Goodyear)
• Front tread, premium, highway (Requires R4A Goodyear or R4L Michelin)
• Front wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole. 10,000 lbs. (4536 kg) capacity, (Requires Q83 steel rear wheel)
• Fuel sender assembly. Robust fuel pump
• Rear tire manufacturer code, Goodyear (Requires R4A Goodyear)

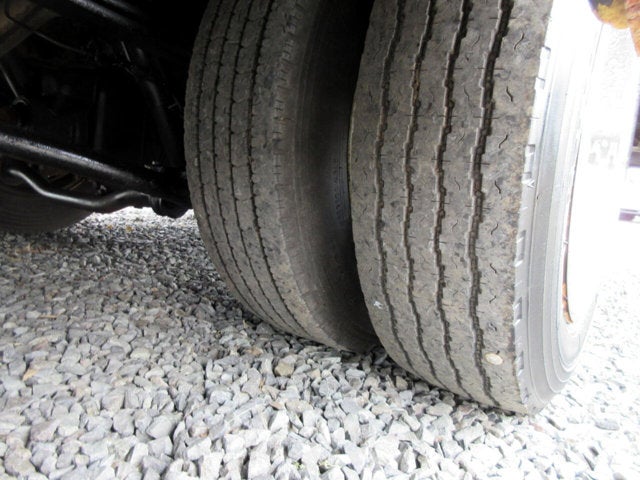

• Rear tire size, 225/70R19.5F - 13,660 lbs. (6196 kg) capacity, (With S4A Goodyear, requires S3C rear premium highway tread or S3H rear traction tread; with S4L Michelin, requires S3C rear premium highway tread or S3J rear highway traction tread; with S4N Bridgestone requires S3M rear all season tread)
• Rear tread, premium, highway (Requires S4A Goodyear or S4L Michelin)
• Rear wheel drive
• Rear wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole, 20,000 lbs. (9072 kg) capacity, (Requires Q82 steel front wheel)
• Tethered fuel cap

• 4-wheel disc, 4-channel ABS
• Air bags, Supplemental Inflatable Restraints not included. This vehicle does not include any air bags

SINGLE SPEED, 13,500 LBS. (6123 KG) CAPACITY

• includes 2-piston brake applied calipers (STD)

SMOKERS PACKAGE

• -cigarette lighter/muffin ashtray located on center console

SINGLE, 60-GALLON (227L) FUEL CAPACITY

• Includes 2 auxiliary fuel ports

225/70R19.5F

• (STD)

225/70R19.5F

• (STD)

SUPPLEMENTAL INFLATABLE RESTRAINTS NOT INCLUDED

• (STD)

19,500 LBS. (8845 KG) CAPACITY

• (STD)

OPTION PTO NOT REQUIRED

• (STD)

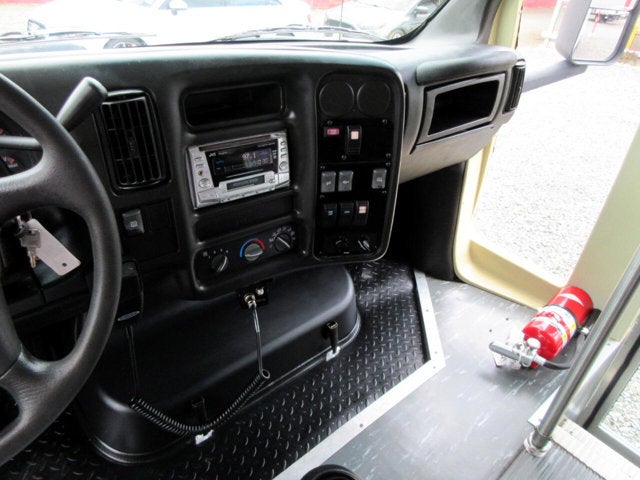

PROVISIONS FOR STEREO

• -Includes AM/FM antenna
• lead wiring for speakers
• and separate door chime module

FEDERAL REQUIREMENTS

• (STD)

PREMIUM HIGHWAY

• (STD)

233 (591.9 CM)

• -with 168" (425.4 cm) CA with 274" (695.9 cm) CE. Includes a 8 mm 80
• 000 psi (551
• 600 kPa) yield strength
• steel frame
• RBM: 824
• 800 Section Modulus 10.31

19.5" X 6.75" (49.5 CM X 17.1 CM), STEEL DISC

• (STD)

AUTOMATIC, ALLISON 1000PTS PUPIL TRANSPORTATION/SHUTTLE SERIES

• -with 0.71 overdrive. Torque Rating: 520 lb-ft (705 N-m). Column shift and Parking pawl.

7000 LBS. (3175 KG) CAPACITY

• (Includes 4-piston brake apply calipers) (STD)

VERY DARK PEWTER

• (STD)

HIGH-BACK BUCKET, FIXED HEIGHT, MANUAL ADJUSTER

• (STD)

DELUXE FRONT APPEARANCE PACKAGE

• -(Includes Up level stationary grille
• V46 chrome front bumper
• quad painted headlamps with chrome trim)

19.5" X 6.75" (49.5 CM X 17.1 CM), STEEL DISC

• (STD)

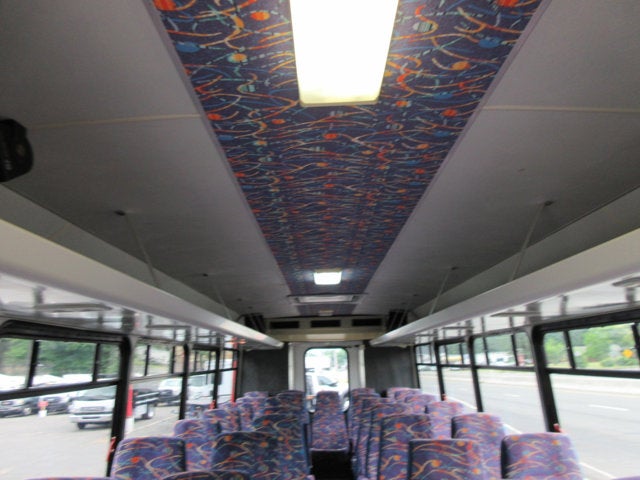

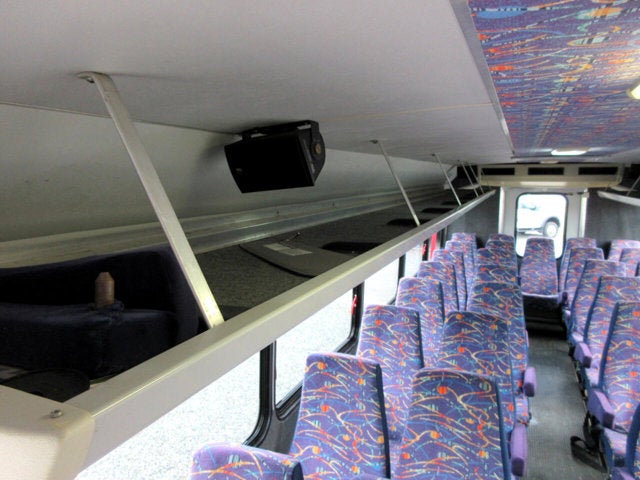

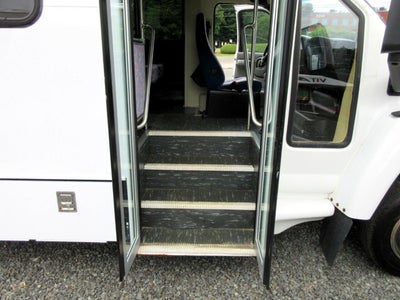

SHUTTLE BUS

• -(Includes C60 air conditioning
• UZA roof marker delete
• N12 rear exit exhaust system
• UEA tail lamp delete
• provisions for rear heat on driver side
• provisions for 100 amp service on driver side
• battery located under driver door.) aft axle fuel tank with dual auxiliary fuel ports and driver side/passenger side fill capability
• APL passenger seat delete
• WE7 passenger door delete). (Frames: With GZG or GZJ GVWRs
• includes a 6 mm 50
• 000 psi (344
• 750 kPa) yield strength
• steel frame
• RBM: 381
• 500 Section Modulus 7.63. With GW2 or GW4 GVWR Sales packages
• includes a 80
• 000 psi (551
• 600 kPa) yield strength
• steel frame
• RBM: 824
• 800 Section Modulus 10.31)

TAPERED LEAF, 7000 LBS. (3175 KG) CAPACITY

• (includes stabilizer) (STD)

VINYL SEAT TRIM

• (STD)

PREMIUM HIGHWAY

• (STD)

DRIVER CONVENIENCE PACKAGE

• Includes N33 tilt-wheel and K34 cruise control

• SINGLE SPEED 13 500 LBS. (6123 KG) CAPACITY includes 2-piston brake applied calipers (STD)
• SMOKERS PACKAGE -cigarette lighter/muffin ashtray located on center console
• ELECTRIC REMOTE CONTROL LIGHTED HEATED 102" (259 CM) WIDE LOAD INTEGRAL ARM INTEGRAL CONVEX MIRROR
• CRUISE CONTROL
• SINGLE 60-GALLON (227L) FUEL CAPACITY Includes 2 auxiliary fuel ports
• 225/70R19.5F (STD)
• 225/70R19.5F (STD)
• AIR CONDITIONING
• DELETE PASSENGER SIDE DOOR

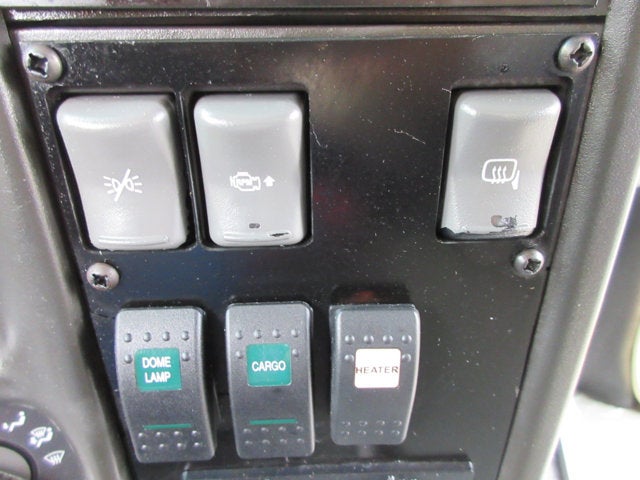

• HIGH IDLE SWITCH
• DELETE ROOF MARKER LAMPS
• 400-WATT 110V
• SUPPLEMENTAL INFLATABLE RESTRAINTS NOT INCLUDED (STD)
• DUAL 700 CCA DELPHI HEAVY-DUTY FREEDOM BS 31-700 12V
• 19 500 LBS. (8845 KG) CAPACITY (STD)
• OPTION PTO NOT REQUIRED (STD)
• PROVISIONS FOR STEREO -Includes AM/FM antenna lead wiring for speakers and separate door chime module
• LUMBAR SUPPORT-DRIVER SEAT FEATURE
• FRONT CHROMED STEEL THICKNESS 5/32" (3.9 mm)
• FEDERAL REQUIREMENTS (STD)
• TILT-WHEEL ADJUSTABLE STEERING
• PREMIUM HIGHWAY (STD)
• 233 (591.9 CM) -with 168" (425.4 cm) CA with 274" (695.9 cm) CE. Includes a 8 mm 80 000 psi (551 600 kPa) yield strength steel frame RBM: 824 800 Section Modulus 10.31
• 19.5" X 6.75" (49.5 CM X 17.1 CM) STEEL DISC (STD)
• REAR STABILIZER BAR
• AUTOMATIC ALLISON 1000PTS PUPIL TRANSPORTATION/SHUTTLE SERIES -with 0.71 overdrive. Torque Rating: 520 lb-ft (705 N-m). Column shift and Parking pawl.
• 4.78:1
• TRANSYND SYNTHETIC AUTOMATIC TRANSMISSION FLUID
• MICHELIN
• 7000 LBS. (3175 KG) CAPACITY (Includes 4-piston brake apply calipers) (STD)
• VERY DARK PEWTER (STD)
• HIGH-BACK BUCKET FIXED HEIGHT MANUAL ADJUSTER (STD)
• DELUXE FRONT APPEARANCE PACKAGE -(Includes Up level stationary grille V46 chrome front bumper quad painted headlamps with chrome trim)
• OVER THE AXLE
• NO PASSENGER SEAT DESIRED
• DUAL AD230 DELCO REMY 105-AMP MAXIMUM
• VORTEC 8100 MD GASOLINE V8 325 HP (239 KW) @ 4000 RPM AND 450 LB-FT TORQUE (610 N-M) @ 2 800 RPM.
• 19.5" X 6.75" (49.5 CM X 17.1 CM) STEEL DISC (STD)
• SHUTTLE BUS -(Includes C60 air conditioning UZA roof marker delete N12 rear exit exhaust system UEA tail lamp delete provisions for rear heat on driver side provisions for 100 amp service on driver side battery located under driver door.) aft axle fuel tank with dual auxiliary fuel ports and driver side/passenger side fill capability APL passenger seat delete WE7 passenger door delete). (Frames: With GZG or GZJ GVWRs includes a 6 mm 50 000 psi (344 750 kPa) yield strength steel frame RBM: 381 500 Section Modulus 7.63. With GW2 or GW4 GVWR Sales packages includes a 80 000 psi (551 600 kPa) yield strength steel frame RBM: 824 800 Section Modulus 10.31)
• TAPERED LEAF 13 500 LBS. (6123 KG) CAPACITY
• MICHELIN
• WHITE POWDER COATED PAINTED WHEELS
• TAPERED LEAF 7000 LBS. (3175 KG) CAPACITY (includes stabilizer) (STD)
• INSIDE DAY/NIGHT REARVIEW MIRROR
• VINYL SEAT TRIM (STD)
• PREMIUM HIGHWAY (STD)
• DRIVER CONVENIENCE PACKAGE Includes N33 tilt-wheel and K34 cruise control
• DELETE REAR TAIL LAMPS
• Steel Wheels
• Tires - Front All-Season
• Rear Wheel Drive
• Steel Wheels
• Tires - Rear All-Season
• ABS
• 4-Wheel Disc Brakes
• ABS
• 4-Wheel Disc Brakes
• Intermittent Wipers
• Daytime Running Lights
• Running Boards/Side Steps
• Power Steering
• Power Outlet
• Power Outlet
• Bucket Seats
• Bucket Seats
• AM/FM Stereo
• Vinyl Seats
• ABS
• 4-Wheel Disc Brakes
• Daytime Running Lights

• Vehicle
• Front Frame Rating: - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 700
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 700
• Maximum Alternator Capacity (amps): 210
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: 1260
• Cooling System
• Total Cooling System Capacity (qts): 27.3
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Front (lbs): 7280
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Rear (lbs): 13500
• Gross Axle Wt Rating - Rear (lbs): 13660
• Gross Axle Wt Rating - Rear (lbs): 13500
• Curb Weight - Front (lbs): 4544.9
• Curb Weight - Rear (lbs): 2802.8

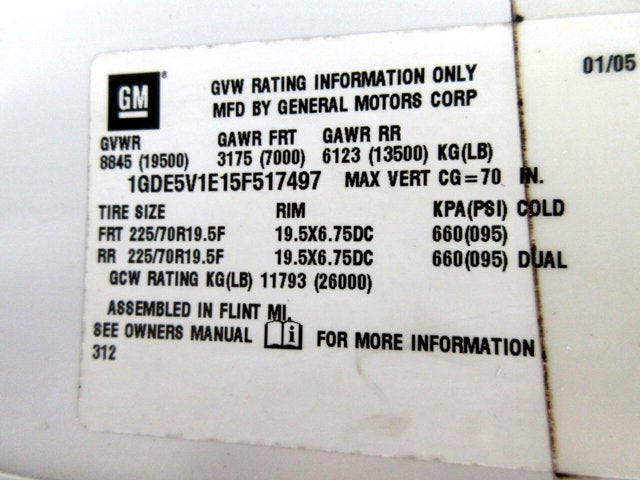

• Gross Vehicle Weight Rating Cap (lbs): 19500
• Gross Vehicle Weight Rating Cap (lbs): 19500
• Gross Combined Wt Rating (lbs): 26000
• Gross Combined Wt Rating (lbs): 40000
• Gross Combined Wt Rating (lbs): 60000
• Suspension
• Suspension Type - Front: Tapered Leaf
• Suspension Type - Rear: Tapered Leaf
• Suspension Type - Rear: Tapered Leaf
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Rear (lbs): 13500
• Spring Capacity - Rear (lbs): 13500
• Axle Type - Front: Reverse I Beam
• Axle Type - Rear: Single Speed
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Front (lbs): 6250
• Axle Capacity - Rear (lbs): 13500
• Axle Capacity - Rear (lbs): 13500
• Axle Ratio (:1) - Rear: 4.78
• Axle Ratio (:1) - Rear: 4.78
• Shock Absorber Diameter - Front (mm): 35
• Stabilizer Bar Diameter - Front (in): 2
• Stabilizer Bar Diameter - Rear (in): 1.75
• Brakes
• Brake Type: Pwr 2 Piston
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 15 x 1.5
• Tires
• Front Tire Order Code: XTN
• Front Tire Order Code: XTN
• Rear Tire Order Code: YTN
• Rear Tire Order Code: YTN

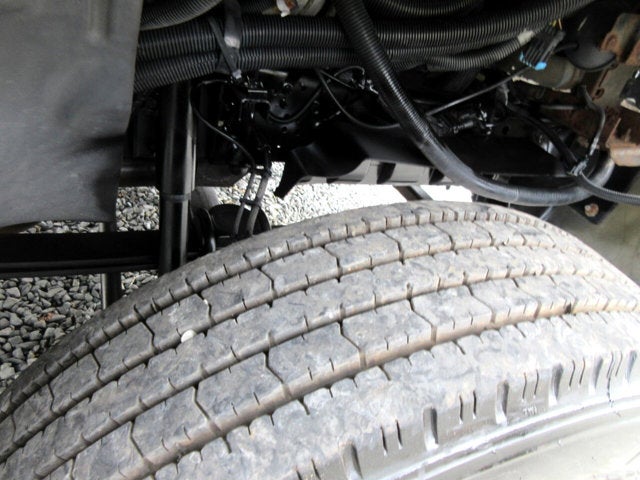

• Front Tire Size: 225/70R19.5F
• Front Tire Size: 225/70R19.5F
• Rear Tire Size: 225/70R19.5F
• Rear Tire Size: 225/70R19.5F
• Front Tire Capacity (lbs): 7280
• Front Tire Capacity (lbs): 7280
• Rear Tire Capacity (lbs): 13660
• Rear Tire Capacity (lbs): 13660
• Revolutions/Mile @ 45 mph - Front: 646
• Revolutions/Mile @ 45 mph - Front: 646
• Revolutions/Mile @ 45 mph - Rear: 646
• Revolutions/Mile @ 45 mph - Rear: 623
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 1
• Wheels
• Front Wheel Size (in): 19.5 x 6.75
• Front Wheel Size (in): 19.5 x 6.75
• Rear Wheel Size (in): 19.5 x 6.75
• Rear Wheel Size (in): 19.5 x 6.75
• Front Wheel Offset (mm): 5.60
• Front Wheel Offset (mm): 5.60
• Rear Wheel Offset (mm): 5.60
• Rear Wheel Offset (mm): 5.60
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• # of Bolt Holes - Rear: 8
• # of Bolt Holes - Spare: 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Front Wheel Description Cont.: Hub Piloted
• Rear Wheel Description Cont.: Hub Piloted
• Front Bolt Pattern: 8stud/275mm
• Front Bolt Pattern: 8stud/275mm
• Rear Bolt Pattern: 8stud/275mm
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.1
• Steering Ratio (:1), At Lock: 19.6
• Frame
• Frame Type: Ladder-Type
• Sect Modulus Rails Only (in³): 10.31
• Sect Modulus Rails Only (in³): 7.63
• Frame RBM (N/A): 381500
• Frame RBM (N/A): 824800
• Frame RBM (N/A): 381500
• Frame Strength (lbs): 50000
• Frame Strength (lbs): 80000
• Frame Thickness (in): 0.24
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 60
• Aux Fuel Tank Capacity, Approx (gal): 5
• Fuel Tank Location: Aft of rear axle
• Aux Fuel Tank Location: Temporary
• Exterior Dimensions
• Wheelbase (in): 233
• Length, Overall w/o rear bumper (in): 376.3
• Width, Max w/o mirrors (in): 95.9
• Height, Overall (in): 89.5
• Overhang, Front (in): 37.0
• Front Bumper to Back of Cab (in): 102.5
• Cab to Axle (in): 168
• Cab to End of Frame (in): 274
• Frame Width, Rear (in): 2.84
• Body Length Default Value (ft): 22
• Interior Dimensions

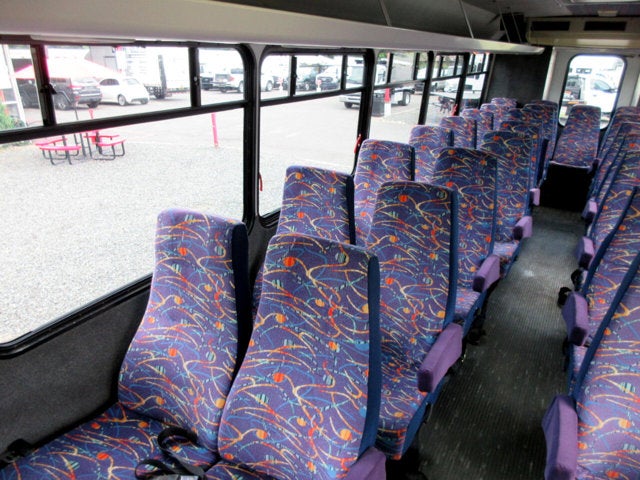

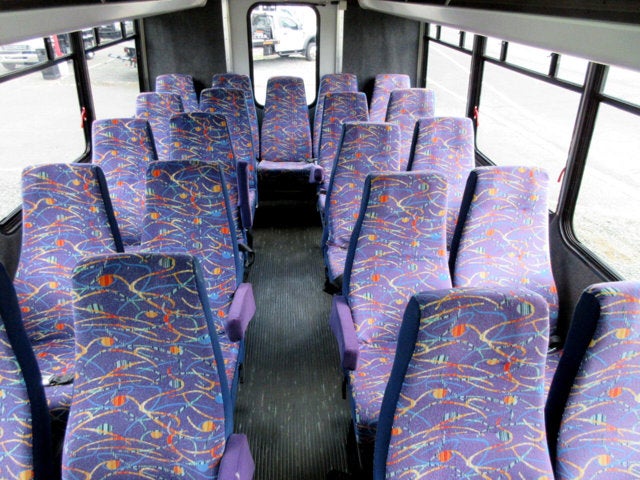

• Passenger Capacity: 1
• Passenger Capacity: 2
• Front Head Room (in): 40.6
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 66.8
• Front Hip Room (in): 63.8
• Summary

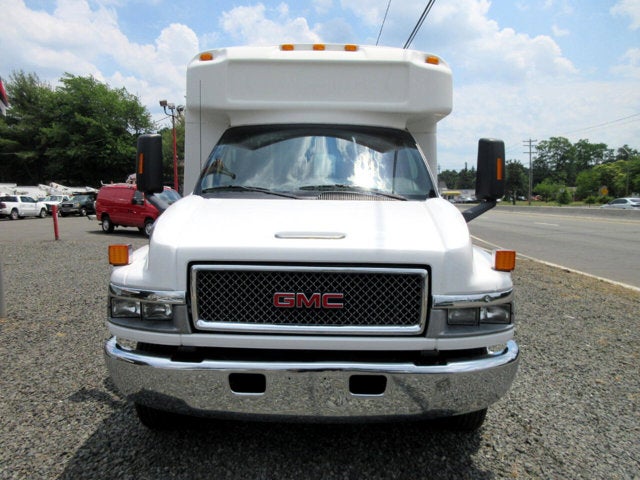

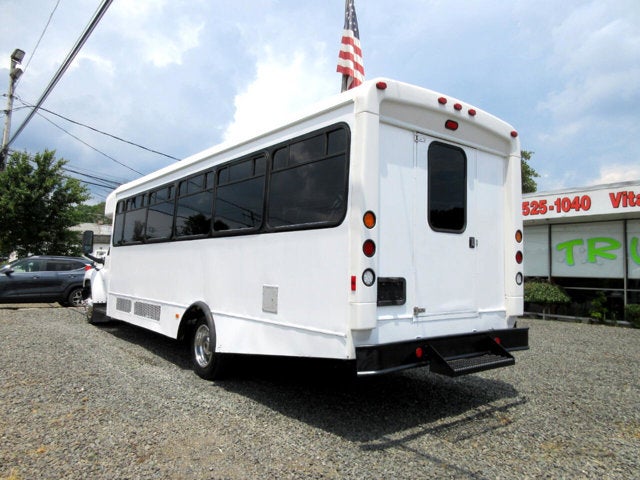

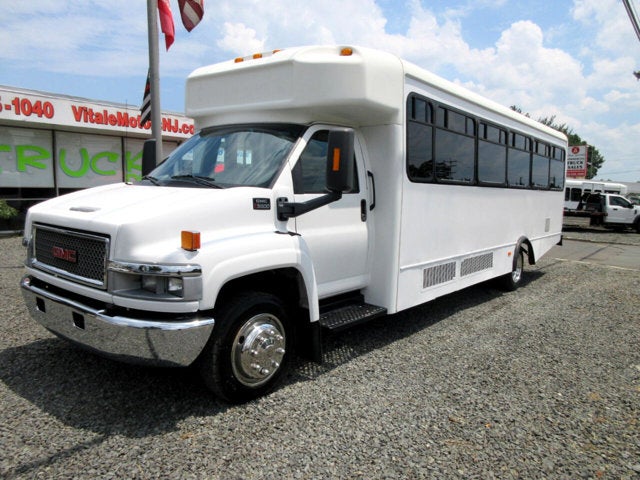

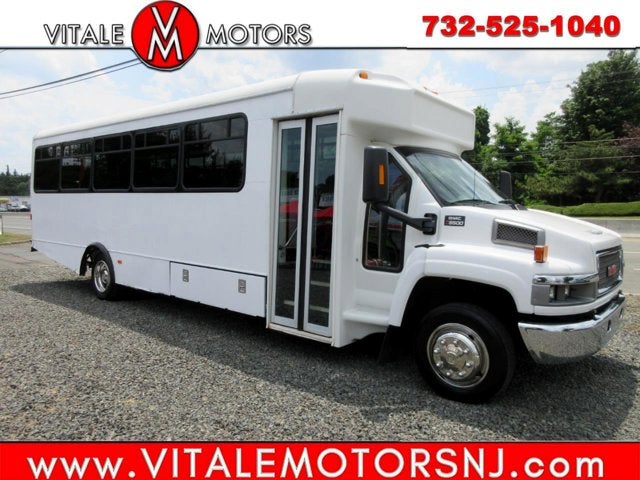

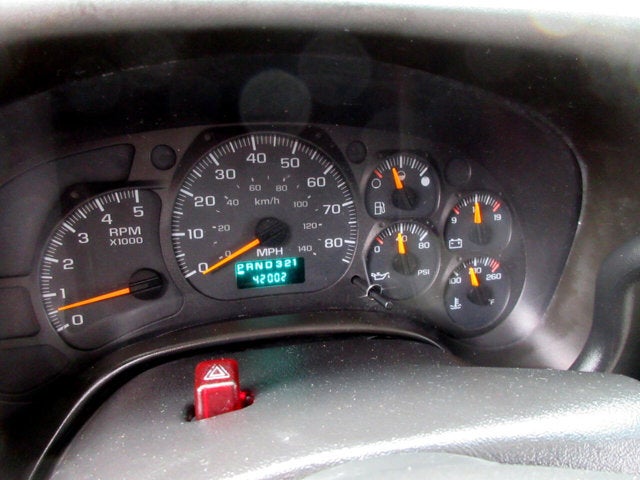

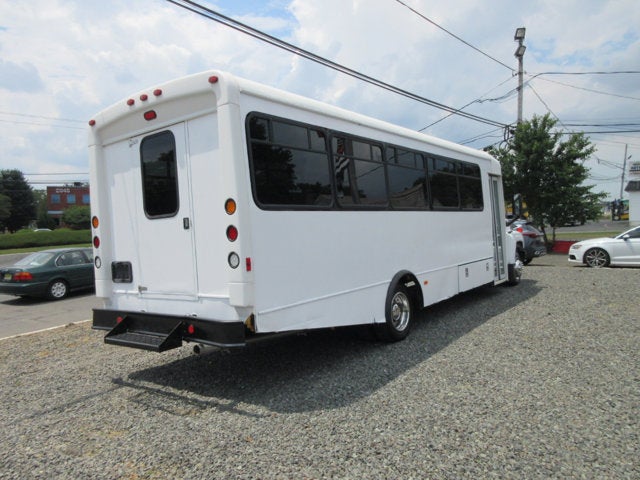

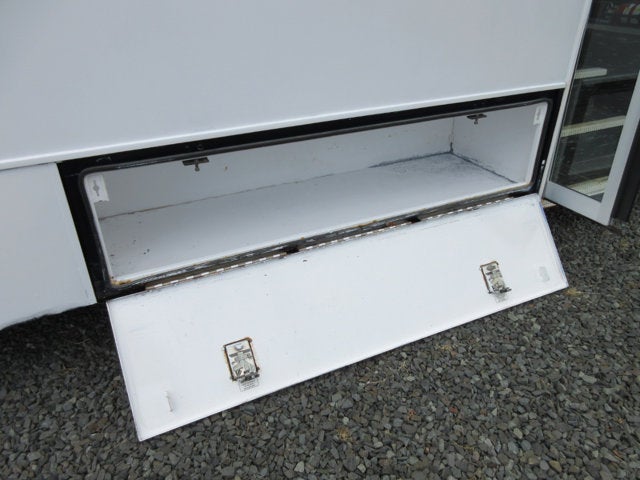

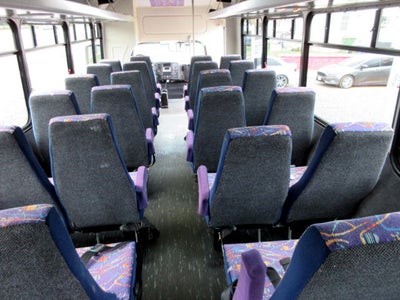

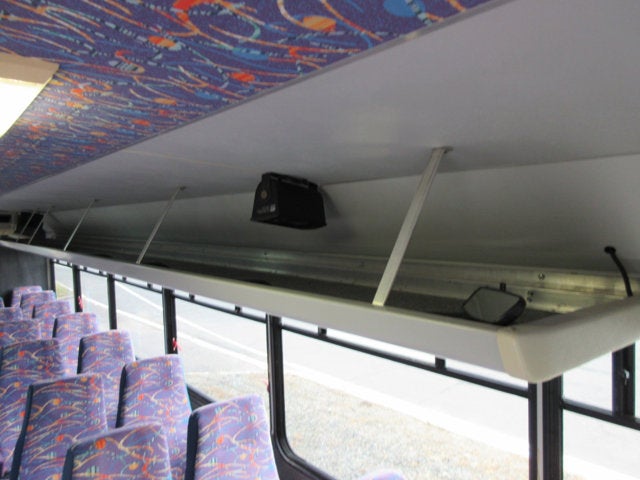

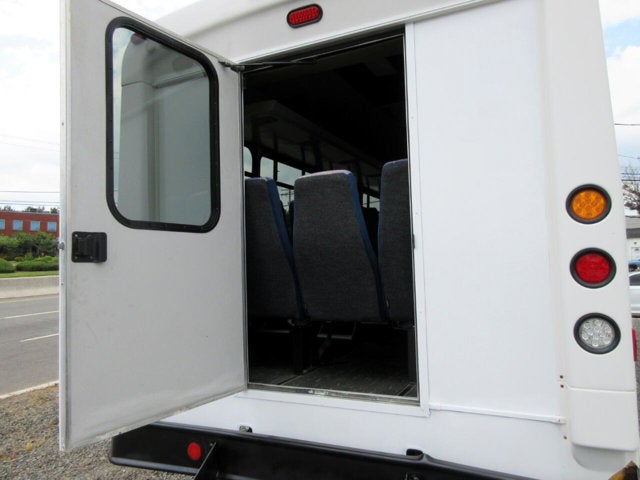

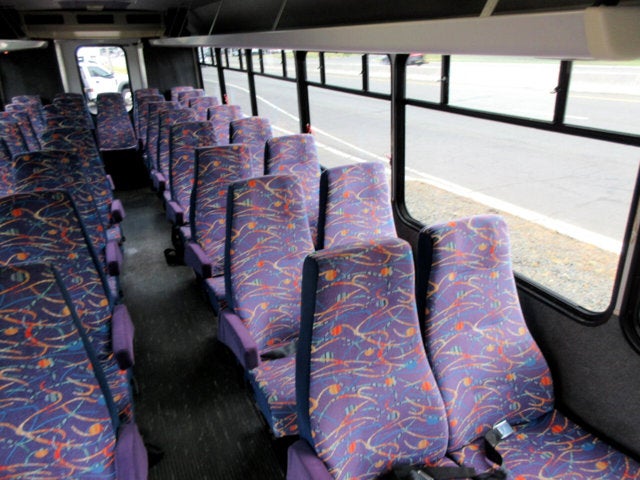

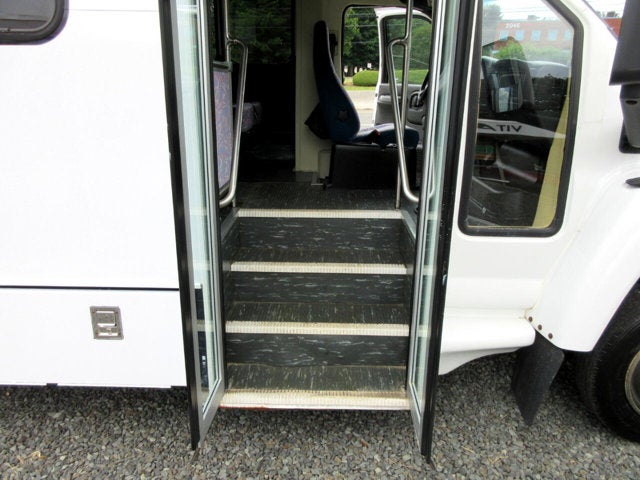

• Vehicle Name: GMC TC5500
• Body Style: Cutaway Chassis Cab
• Medium Duty Performance
• Driver Ratio: 0.75
• Torque @ Clutch Engage (ft-lbs): 332
• Torque Converter: 2.05
• Torque Converter: 1.00
• Static Loaded Radius (in): 14.8
• Static Loaded Radius (in): 17.2
• Max Speed For Gradeability: 75
