• Daytime Running Lamps

TIRES, REAR, LT215/85R16E 212/115Q BW HWY LRR

• (low rolling resistance) tubeless steel belted radial
• all season

ENGINE, DIESEL 5.2L 4 CYLINDER

• 215 hp [160.3 kW] @2500 rpm
• 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve
• four cycle
• chain-driven dual overhead camshaft valve train
• a cast iron cylinder block
• and a cast aluminum cylinder head. Turbocharged
• inter-cooled
• water cooled EGR
• direct injection
• electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure
• high coolant temperature
• and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)

TIRES, FRONT, LT215/85R16E 212/115Q BW HWY LRR

• (low rolling resistance) tubeless steel belted radial
• all season

PIO, BACK UP ALARM

• (Port Installed Option)

PRE-DELIVERY INSPECTION

• Provides "Pre-Delivery Inspection" at the Port in cases where the vehicle needs to leave the port directly for the final stage manufacturing process and will not visit a dealer. NOTE: General Motors Company will not pay Dealer for Pre-Delivery Inspection
• when this option is selected.

SEAT, FRONT HIGH BACK BUCKET DRIVER AND PASSENGER

• tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat (STD)

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER, AUXILIARY JACK, USB PORT AND Bluetooth®

• (STD)

PIO, ENGINE BLOCK HEATER WITH RECEPTACLE

• (Port Installed Option)

PREFERRED EQUIPMENT GROUP

• includes standard equipment

PIO, REAR DOME AND BODY LAMP SWITCH

• (Port Installed Option)

PIO, GOVERNOR, SPEED LIMITED TO 65-MPH

• (Port Installed Option)

PIO, EXTRA SET OF KEYS

• provides customer with a total of 4 keys
• (Port Installed Option).

PIO, ENGINE SHUTDOWN-AUTOMATIC

• hot water temperature
• low water level and low oil pressure triggered
• (Port Installed Option)

TRANSMISSION, 6-SPEED AUTOMATIC AISIN A465 TRANSMISSION

• with fifth and sixth gear overdrive with lock up in 2nd
• 3rd
• 4th
• 5th and 6th
• PTO capability automatic torque converter lockup in stationary PTO mode. (STD)

• TIRES REAR LT215/85R16E 212/115Q BW HWY LRR (low rolling resistance) tubeless steel belted radial all season
• ENGINE DIESEL 5.2L 4 CYLINDER 215 hp [160.3 kW] @2500 rpm 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve four cycle chain-driven dual overhead camshaft valve train a cast iron cylinder block and a cast aluminum cylinder head. Turbocharged inter-cooled water cooled EGR direct injection electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure high coolant temperature and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)
• TIRES FRONT LT215/85R16E 212/115Q BW HWY LRR (low rolling resistance) tubeless steel belted radial all season
• PIO BACK UP ALARM (Port Installed Option)
• PRE-DELIVERY INSPECTION Provides "Pre-Delivery Inspection" at the Port in cases where the vehicle needs to leave the port directly for the final stage manufacturing process and will not visit a dealer. NOTE: General Motors Company will not pay Dealer for Pre-Delivery Inspection when this option is selected.
• SEAT FRONT HIGH BACK BUCKET DRIVER AND PASSENGER tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat (STD)
• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER AUXILIARY JACK USB PORT AND Bluetooth® (STD)
• REAR AXLE 4.56 RATIO
• PIO ENGINE BLOCK HEATER WITH RECEPTACLE (Port Installed Option)
• PREFERRED EQUIPMENT GROUP includes standard equipment
• PIO REAR DOME AND BODY LAMP SWITCH (Port Installed Option)
• PIO GOVERNOR SPEED LIMITED TO 65-MPH (Port Installed Option)
• PIO EXTRA SET OF KEYS provides customer with a total of 4 keys (Port Installed Option).
• MEDIUM ASH GRAY CLOTH SEAT TRIM
• OCEAN FREIGHT SURCHARGE
• PIO ENGINE SHUTDOWN-AUTOMATIC hot water temperature low water level and low oil pressure triggered (Port Installed Option)
• ARC WHITE
• TRANSMISSION 6-SPEED AUTOMATIC AISIN A465 TRANSMISSION with fifth and sixth gear overdrive with lock up in 2nd 3rd 4th 5th and 6th PTO capability automatic torque converter lockup in stationary PTO mode. (STD)
• Cruise Control
• Turbocharged
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Traction Control
• Tires - Front All-Season
• Tires - Rear All-Season
• Steel Wheels
• Running Boards/Side Steps
• LED Headlights
• AM/FM Stereo
• CD Player
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Bucket Seats
• Cloth Seats
• Floor Mats
• Adjustable Steering Wheel
• A/C
• Power Windows
• Power Door Locks
• Cruise Control
• Daytime Running Lights

• Vehicle
• Number of Passenger Doors: 2
• Front Frame Rating: - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 140
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 20.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5360
• Gross Axle Wt Rating - Rear (lbs): 9880
• Curb Weight - Front (lbs): 4130
• Curb Weight - Rear (lbs): 1973
• Gross Vehicle Weight Rating Cap (lbs): 14500
• Gross Combined Wt Rating (lbs): 20500
• Suspension
• Suspension Type - Front: Independent w/Tapered Leaf Springs
• Suspension Type - Rear: Independent w/Multi-Leaf Springs
• Spring Capacity - Front (lbs): 6830
• Spring Capacity - Rear (lbs): 9880
• Axle Type - Front: I-Beam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6830
• Axle Capacity - Rear (lbs): 11020
• Axle Ratio (:1) - Rear: 4.555
• Shock Absorber Diameter - Front (mm): 42.0
• Shock Absorber Diameter - Rear (mm): 42.0
• Stabilizer Bar Diameter - Front (in): 1.65
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.5 x - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 12.6 x 3.94
• Tires
• Front Tire Order Code: 2TA
• Rear Tire Order Code: 3TA
• Front Tire Size: LT215/85R16
• Rear Tire Size: LT215/85R16
• Front Tire Capacity (lbs): 2680
• Rear Tire Capacity (lbs): 2470
• Revolutions/Mile @ 45 mph - Front: 682.9
• Revolutions/Mile @ 45 mph - Rear: 682.9
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Wheels
• Front Wheel Size (in): 16 x 6
• Rear Wheel Size (in): 16 x 6
• Front Wheel Offset (mm): 127
• Rear Wheel Offset (mm): 127
• # of Bolt Holes - Front: 6
• # of Bolt Holes - Rear: 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Bolt Pattern: 6 Hole JIS 8.75"
• Rear Bolt Pattern: 6 Hole JIS 8.75"
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 18.8-20.9
• Steering Ratio (:1), At Lock: 18.8-20.9
• Turning Diameter - Curb to Curb (ft): 42.7
• Turning Diameter - Wall to Wall (ft): 48.9
• Frame
• Frame Type: Ladder-Type C-Section
• Sect Modulus Rails Only (in³): 7.20
• Frame RBM (N/A): 316800
• Frame Strength (lbs): 44000
• Frame Thickness (in): 8.50 x 2.76 x 0.24
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 30.0
• Fuel Tank Location: Frame Rail
• Exterior Dimensions
• Wheelbase (in): 150.0
• Length, Overall w/o rear bumper (in): 241.5
• Width, Max w/o mirrors (in): 81.3
• Height, Overall (in): 90.8
• Overhang, Front (in): 48.4
• Overhang, Rear w/o bumper (in): 43.1
• Front Bumper to Back of Cab (in): 70.9
• Cab to Axle (in): 127.5
• Cab to End of Frame (in): 170.6
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): 31.1
• Frame Width, Rear (in): 33.5
• Ground Clearance, Front (in): 7.5
• Ground Clearance, Rear (in): 7.5
• Body Length Default Value (ft): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 38.4
• Front Leg Room (in): 29.5
• Front Shoulder Room (in): 70.7
• Front Hip Room (in): 67.7
• Summary

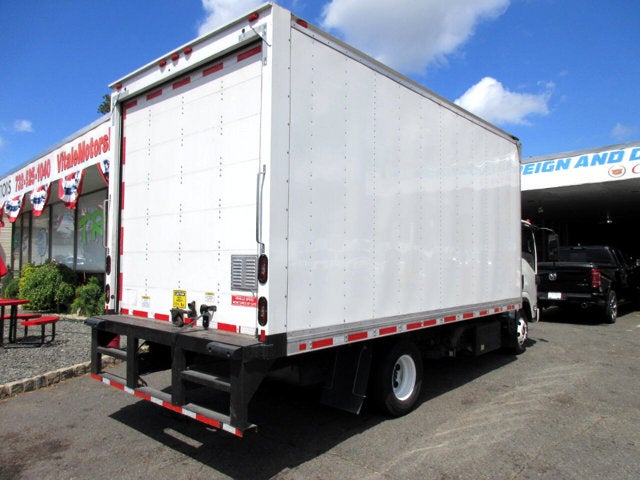

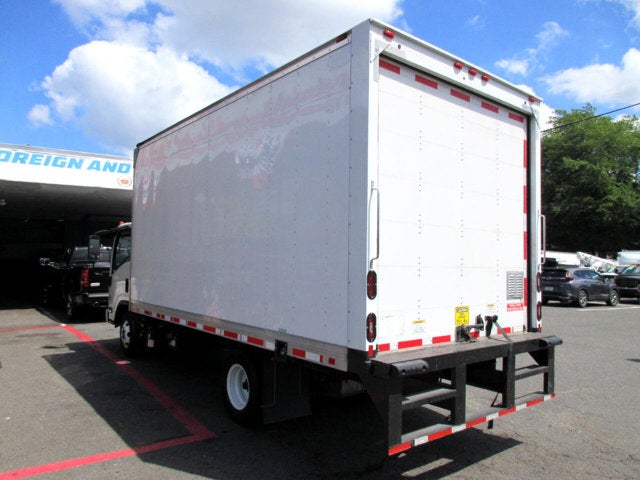

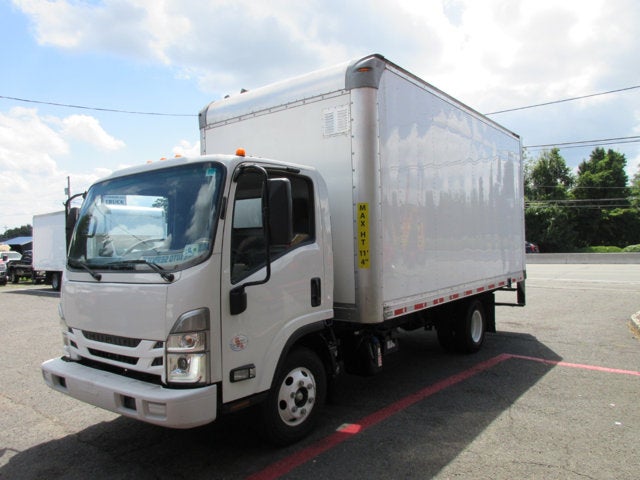

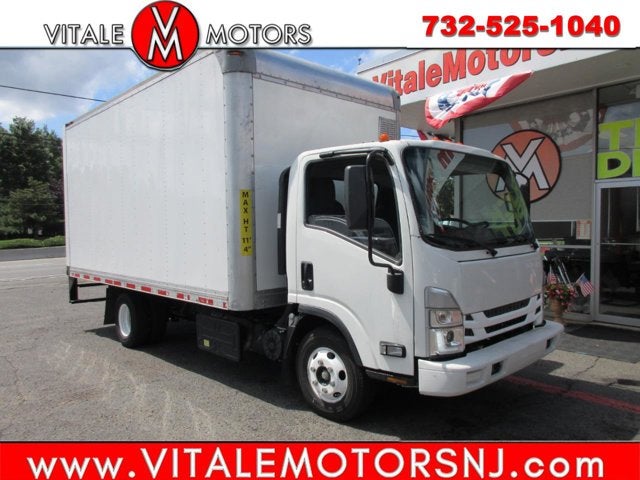

• Vehicle Name: Chevrolet 4500HD LCF Diesel
• Body Style: Regular Cab Chassis Cab
• Medium Duty Performance
• Driver Ratio: - TBD -
• Torque @ Clutch Engage (ft-lbs): - TBD -
• Torque Converter: 1.7639
• Static Loaded Radius (in): - TBD -
• Max Speed For Gradeability: - TBD -
