• Air conditioning, single-zone manual
• Assist handle, front passenger
• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers (Not available with (UM7) AM/FM stereo, (U1C) AM/FM stereo with CD player, (US8) AM/FM stereo with CD/MP3 player, (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation or (UL5) radio delete.)
• Defogger, side windows
• Floor covering, Black rubberized-vinyl front
• Headliner, cloth, over driver and passenger
• Heater and defogger with front and side window defoggers
• Lighting, interior with dome light and door handle-activated switches
• Oil life monitor

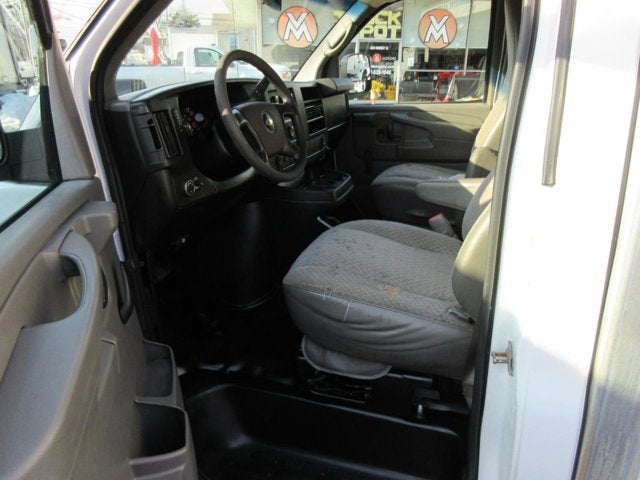

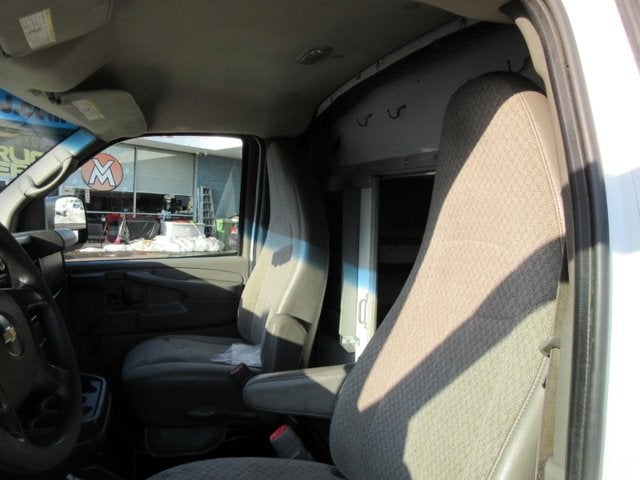

• Seating arrangement, driver and front passenger highback bucket includes head restraints and vinyl or cloth trim
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Alternator, 145 amps
• Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Fuel tank capacity, mid-frame and approximately 33 gallons (124.9L)
• Incomplete vehicle certification
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

• Air bag deactivation switch, frontal, passenger-side (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, frontal, driver and right-front passenger (Not available with (ZX1) driver only high-back bucket seat. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps
• Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels. Not available with CG33803 models or CG33903 models.)

GVWR, 9900 LBS. (4490 KG)

• (STD)

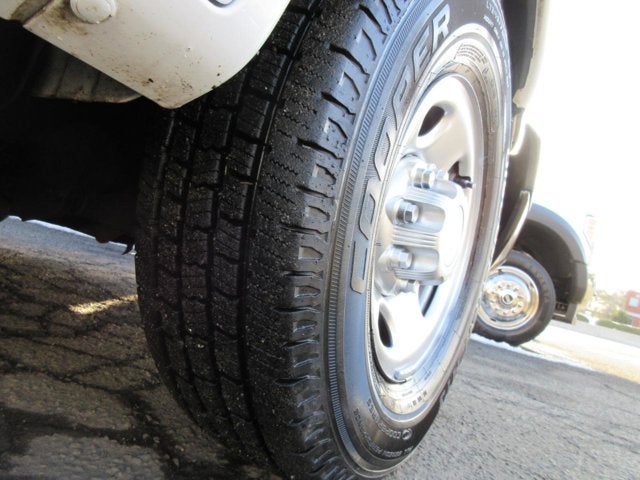

TIRES, FRONT LT245/75R16E ALL-SEASON, BLACKWALL

• (STD)

WHEELS 16" X 6.5" (40.6 CM X 16.5 CM) STEEL

• (STD)

AUDIO SYSTEM, AM/FM STEREO

• with seek-and-scan
• digital clock and 2 front door speakers

FUEL, ADDITIONAL 3-GALLONS

• 3 gallons of fuel in addition to normal assembly plant fill

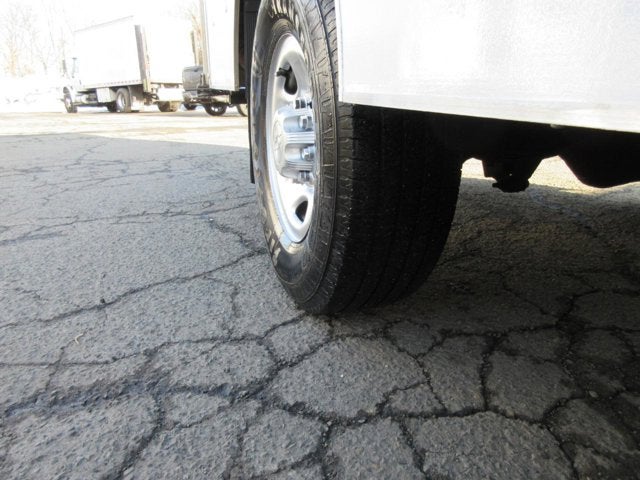

TIRES, REAR LT245/75R16E ALL-SEASON, BLACKWALL

• (STD)

BODY, STANDARD

• (STD)

1WT PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

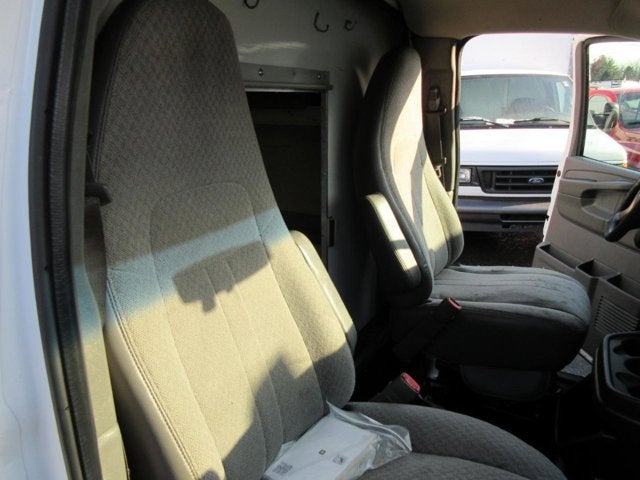

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGHBACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

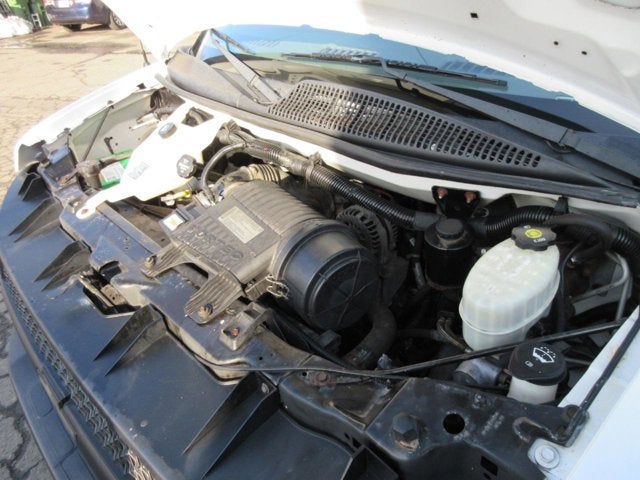

ENGINE, VORTEC 4.8L V8 SFI

• (285 hp [212.5 kW] @ 5400 rpm
• 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (STD) Includes external engine oil cooler.

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)

BODY, SOFT-MOUNT DONUT AND BOLT

• (for mounting Upfit body to chassis)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

• GVWR 9900 LBS. (4490 KG) (STD)
• WHEEL CONFIGURATION REAR SINGLE
• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• REAR AXLE 3.42 RATIO
• TIRES FRONT LT245/75R16E ALL-SEASON BLACKWALL (STD)
• WHEELS 16" X 6.5" (40.6 CM X 16.5 CM) STEEL (STD)
• AUDIO SYSTEM AM/FM STEREO with seek-and-scan digital clock and 2 front door speakers
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM HEAD RESTRAINTS AND INBOARD ARMRESTS
• MIRRORS OUTSIDE MANUAL BLACK
• FUEL ADDITIONAL 3-GALLONS 3 gallons of fuel in addition to normal assembly plant fill
• TIRES REAR LT245/75R16E ALL-SEASON BLACKWALL (STD)
• BODY STANDARD (STD)
• 1WT PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGHBACK BUCKET includes head restraints and vinyl or cloth trim (STD)
• PAINT SOLID
• ENGINE VORTEC 4.8L V8 SFI (285 hp [212.5 kW] @ 5400 rpm 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (STD) Includes external engine oil cooler.
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)
• BODY SOFT-MOUNT DONUT AND BOLT (for mounting Upfit body to chassis)
• STABILITRAK TRACTION ASSISTANCE AND VEHICLE STABILITY ENHANCEMENT SYSTEM
• MIRROR INSIDE REARVIEW MANUAL DAY/NIGHT
• SUMMIT WHITE
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Intermittent Wipers
• Bucket Seats
• A/C
• Bucket Seats
• Power Outlet
• Trip Computer
• Immobilizer
• Rear Defrost
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 13.4

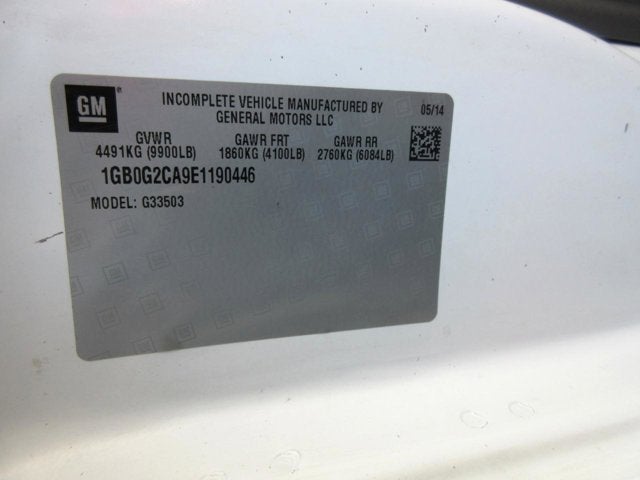

• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 2993
• Curb Weight - Rear (lbs): 1503
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33.0
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 139.00
• Length, Overall w/o rear bumper (in): 246.70
• Width, Max w/o mirrors (in): 79.10
• Height, Overall (in): 82.90
• Overhang, Front (in): 39.70
• Front Bumper to Back of Cab (in): 98.70
• Cab to Axle (in): 80.00
• Cab to End of Frame (in): 148.50
• Ground to Top of Frame (in): 23.31
• Frame Width, Rear (in): 34.80
• Ground Clearance, Front (in): 7.60
• Ground Clearance, Rear (in): 6.80
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.20
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Summary

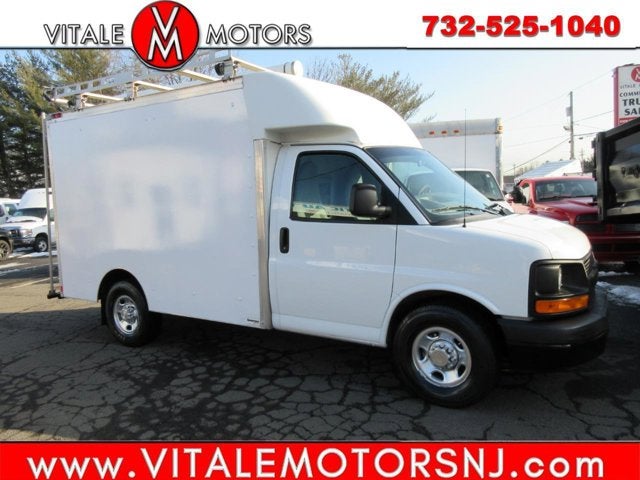

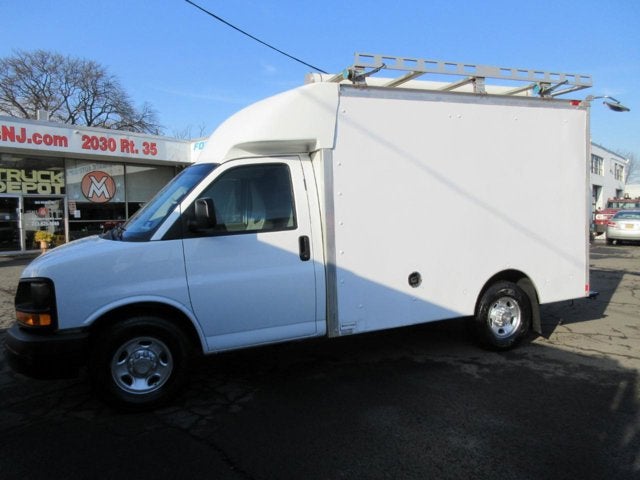

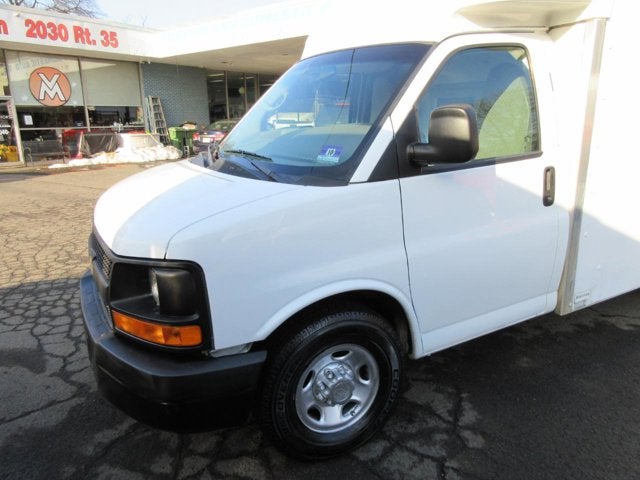

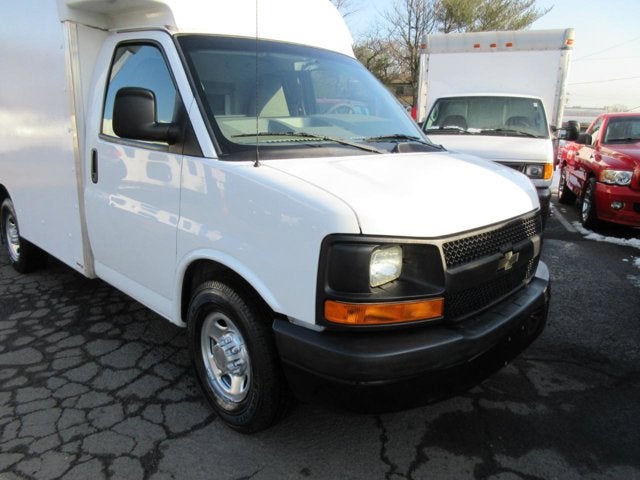

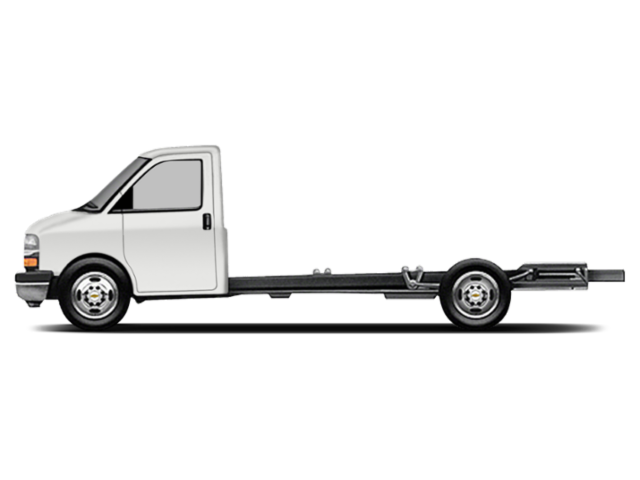

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Body Style: 139.0" WB
• Body Code: ZW9
